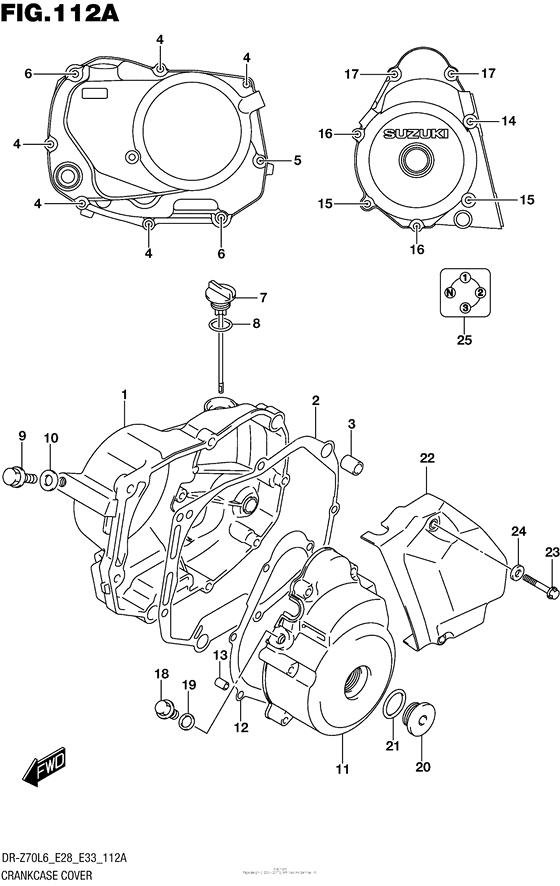

Crankcase Cover Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-14H00-000 Cover,clutch |
11341-14H00-000 |
from US $141.68 |
||
|
2
|
2
11482-09420-000 GASKET,CLUTCH COVER |
11482-09420-000 |
from US $11.44 |
||
|
3
|
3
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
4
|
4
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
5
|
5
01547-0635A-000 BOLT |
01547-0635A-000 |
from US $0.96 |
||
|
6
|
6
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
7
|
7
11971-055A0-000 GAUGE,OIL LEVEL |
11971-055A0-000 |
from US $6.40 |
||
|
8
|
8
09280-16008-000 O RING(D:3.2,ID:15.8)O ring (d:3.2,id:15.8) |
09280-16008-000 |
from US $2.75 |
||
|
9
|
9
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
10
|
10
09168-08015-000 GASKET(8.2X14X1.6) |
09168-08015-000 |
from US $1.28 |
||
|
11
|
11
11351-14H00-000 COVER,MAGNETO |
11351-14H00-000 |
from US $80.59 |
||
|
12
|
12
11483-09440-000 GASKET,MAGNETO COVER |
11483-09440-000 |
from US $5.63 |
||
|
13
|
13
04211-09129-000 PINPin |
04211-09129-000 |
from US $0.96 |
||
|
14
|
14
01547-0630A-000 BOLT |
01547-0630A-000 |
from US $0.96 |
||
|
15
|
15
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
16
|
16
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
17
|
17
01547-0690A-000 Bolt |
01547-0690A-000 |
from US $1.22 |
||
|
18
|
18
09247-12006-000 PLUG(12X10) |
09247-12006-000 |
from US $1.98 |
||
|
19
|
19
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
20
|
20
09259-26011-000 PLUG(26X9) |
09259-26011-000 |
from US $6.35 |
||
|
21
|
21
09280-22008-000 O RING(D:3.1,ID:22.7) |
09280-22008-000 |
from US $1.67 |
||
|
22
|
22
11360-14H00-000 COVER,ENGINE SPROCKET |
11360-14H00-000 |
from US $13.36 |
||
|
23
|
23
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
24
|
24
08322-0106A-000 WASHER |
08322-0106A-000 |
from US $0.76 |
||
|
25
|
25
28117-14H00-000 LABEL,GEAR SHIFT PATTERN |
28117-14H00-000 |
US $2.24 |
