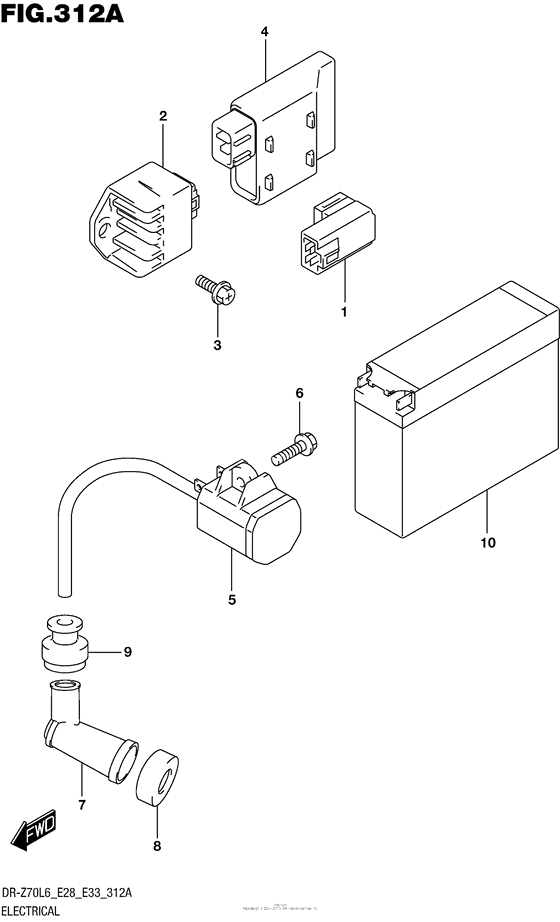

Electrical Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-14H00-000
RELAY ASSY,STARTING MOTOR
|
31800-14H00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-14H01-000 Relay Assy,starting Motor |
31800-14H01-000 |
from US $25.94 |
||
|
2
|
2
32800-41H00-000
Rectifier Assy
|
32800-41H00-000 |
— | ||
| replacement | |||||
|
2
|
2
32800-41H01-000 Rectifier Assy |
32800-41H01-000 |
from US $69.55 |
||
|
3
|
3
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
4
|
4
32900-14H00-000 CDI UNIT |
32900-14H00-000 |
from US $124.08 |
||
|
5
|
5
33410-14H00-000 COIL ASSY,IGNITION |
33410-14H00-000 |
from US $64.40 |
||
|
6
|
6
02162-0620B-000 SCREWBolt, rectifier |
02162-0620B-000 |
from US $3.23 |
||
|
7
|
7
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
8
|
8
33541-38210-000 SEAL,SPARK PLUG |
33541-38210-000 |
US $7.48 |
||
| replacement | |||||
|
8
|
8
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug |
33541-47D00-000 |
from US $4.26 |
||
|
9
|
9
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
10
|
10
33610-39C20-000 BATTERY ASSY(YT4B-BS,12V2.4AH)Battery assy (12v,2.3ah) |
33610-39C20-000 |
from US $178.48 |
||
