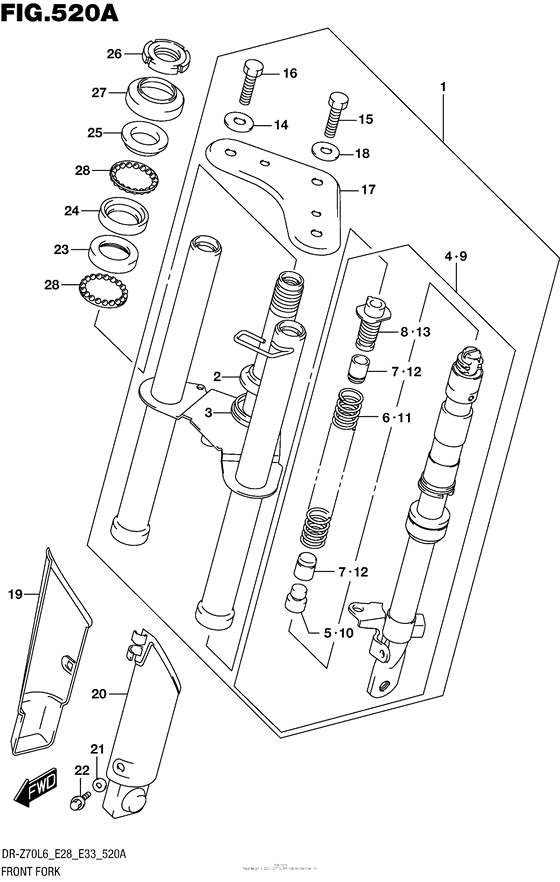

Front Fork Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-14821-000
FORK SET,FR
|
51100-14821-000 |
— | ||
| replacements | |||||
|
1
|
1
51100-14822-000
Fork Set,front
|
51100-14822-000 |
— | ||
|
1
|
1
51100-14831-000 Fork Set,front |
51100-14831-000 |
from US $559.68 |
||
|
2
|
2
51622-14H00-000 RACE,STEERING OUTER LWR |
51622-14H00-000 |
from US $5.81 |
||
|
3
|
3
51644-14H00-000
SEAL,STEERING LWR
|
51644-14H00-000 |
— | ||
| replacement | |||||
|
3
|
3
51644-14H01-000 Seal,steering Lwr |
51644-14H01-000 |
from US $4.93 |
||
|
4
|
4
51110-14H00-000 TUBE ASSY,FR FORK LWR,R |
51110-14H00-000 |
from US $253.84 |
||
|
5
|
5
51116-14H00-000 STOPPER |
51116-14H00-000 |
from US $7.58 |
||
|
6
|
6
51171-14H00-000 SPRING |
51171-14H00-000 |
from US $30.18 |
||
|
7
|
7
51292-14H00-000 STOPPER,RUBBER |
51292-14H00-000 |
from US $4.97 |
||
|
8
|
8
51422-14H00-000 SPRING,JOINT B |
51422-14H00-000 |
US $21.53 |
||
|
9
|
9
51120-14H00-000 TUBE ASSY,FR FORK LWR,L |
51120-14H00-000 |
from US $253.84 |
||
|
10
|
10
51116-14H00-000 STOPPER |
51116-14H00-000 |
from US $7.58 |
||
|
11
|
11
51171-14H00-000 SPRING |
51171-14H00-000 |
from US $30.18 |
||
|
12
|
12
51292-14H00-000 STOPPER,RUBBER |
51292-14H00-000 |
from US $4.97 |
||
|
13
|
13
51422-14H00-000 SPRING,JOINT B |
51422-14H00-000 |
US $21.53 |
||
|
14
|
14
09160-10144-000 WASHER(10X30X2.5)Washer, fr fork upper b |
09160-10144-000 |
from US $7.21 |
||
|
15
|
15
01550-1035A-000 BOLTBolt, fr fork upper |
01550-1035A-000 |
from US $5.68 |
||
|
16
|
16
01550-1035A-000 BOLTBolt, fr fork upper |
01550-1035A-000 |
from US $5.68 |
||
|
17
|
17
51310-14H00-000 BRACKET,UPR |
51310-14H00-000 |
from US $41.58 |
||
|
18
|
18
09160-10128-XC0 WASHER(10.5X25X3.2) |
09160-10128-XC0 |
from US $3.35 |
||
|
19
|
19
51501-14H00-019 PROTECTOR,FR FORK,R |
51501-14H00-019 |
from US $11.04 |
||
|
20
|
20
51511-14H00-019 PROTECTOR,FR FORK,L |
51511-14H00-019 |
from US $11.04 |
||
|
21
|
21
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
22
|
22
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
23
|
23
51611-14H00-000 RACE,STEERING INNER LWR |
51611-14H00-000 |
from US $7.99 |
||
|
24
|
24
51611-20002-000 RACE,STEERING INNER UPRRace, inner |
51611-20002-000 |
from US $6.08 |
||
|
25
|
25
51621-28000-000 RACE,STEERING OUTER UPRRace, outer upper |
51621-28000-000 |
from US $6.40 |
||
|
26
|
26
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem |
51631-28000-000 |
from US $8.36 |
||
|
27
|
27
51643-25001-000 DUST SEAL,STEERING UPRSeal, dust |
51643-25001-000 |
from US $2.13 |
||
|
28
|
28
09269-27001-000 BEARING(27X40.5X5) |
09269-27001-000 |
from US $6.92 |
||
