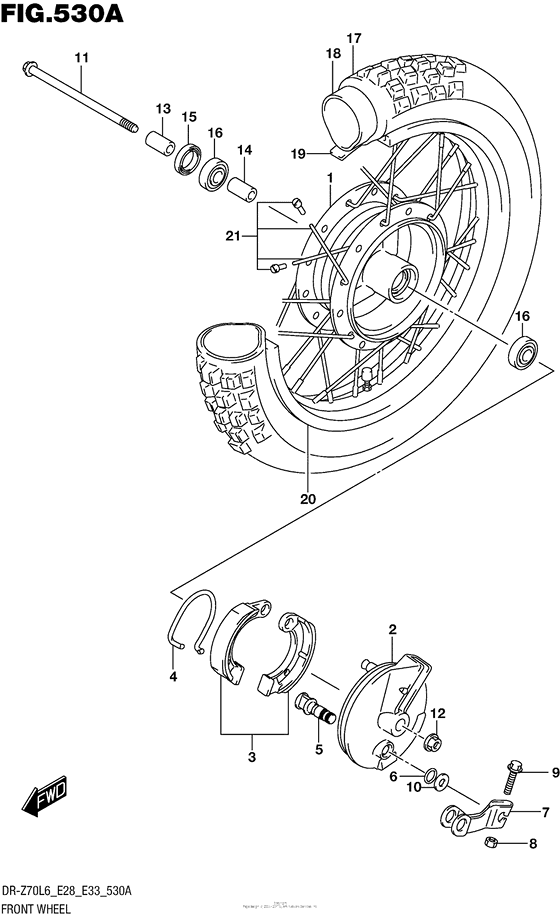

Front Wheel Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-14H00-000 HUB,FR WHEEL |
54110-14H00-000 |
from US $129.90 |
||
|
2
|
2
54210-14H00-000 PANEL,FR BRAKE ANCHORPanel, front brake anchor |
54210-14H00-000 |
from US $56.70 |
||
|
3
|
3
54400-14870-000 SHOE SET,BRAKE |
54400-14870-000 |
from US $26.60 |
||
|
4
|
4
54424-14H00-000 SPRING,BRAKE SHOE |
54424-14H00-000 |
from US $4.34 |
||
|
5
|
5
54440-14H00-000 CAM,BRAKE |
54440-14H00-000 |
from US $11.06 |
||
|
6
|
6
09280-10013-000 O RING(D:2.4,ID:9.6)O ring, protection cover |
09280-10013-000 |
from US $1.88 |
||
|
7
|
7
54451-14H00-000 LEVER,BRAKE CAMLever, brake cam |
54451-14H00-000 |
from US $10.78 |
||
|
8
|
8
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
9
|
9
01550-0525A-000 BOLT |
01550-0525A-000 |
from US $0.70 |
||
|
10
|
10
09160-10121-000 WASHER(10.5X18X1) |
09160-10121-000 |
from US $0.84 |
||
|
11
|
11
54711-14H00-000 AXLE,FR |
54711-14H00-000 |
from US $26.50 |
||
|
12
|
12
08319-3112A-000 NUT |
08319-3112A-000 |
from US $1.98 |
||
|
13
|
13
54741-14H00-000 SPACER,FR AXLE,R |
54741-14H00-000 |
from US $9.86 |
||
|
14
|
14
54731-14H00-000 SPACER,FR HUB BEARING |
54731-14H00-000 |
US $9.53 |
||
|
15
|
15
09282-20008-000 SEAL,OIL(32X20X5)Oil seal |
09282-20008-000 |
from US $5.63 |
||
|
16
|
16
08133-62017-000 BEARINGBearing (12x32x10) |
08133-62017-000 |
from US $10.72 |
||
|
17
|
17
55100-14H00-000 TIRE(2.50 10)Tire, front (2.50-14 4pr)irc |
55100-14H00-000 |
US $118.24 |
||
|
18
|
18
55200-14H00-000 TUBE ASSY,WHEEL INNER |
55200-14H00-000 |
from US $16.89 |
||
|
19
|
19
55261-14H10-000 PROTECTOR,WHEEL INNER TUBE |
55261-14H10-000 |
from US $2.17 |
||
|
20
|
20
55311-14H00-000 RIM,WHEEL(10X1.40)Rim, wheel (1.40x14) |
55311-14H00-000 |
from US $83.60 |
||
|
21
|
21
55320-14H00-000 SPOKE SET,WHEELSpoke set, front wheel |
55320-14H00-000 |
from US $57.04 |
