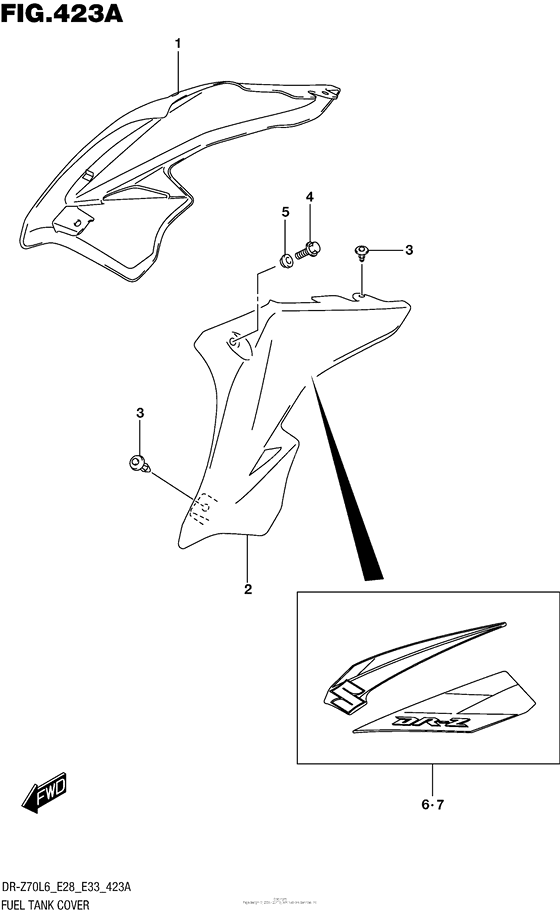

Fuel Tank Cover Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-14H00-YU1 COVER,FUEL TANK,R |
44271-14H00-YU1 |
from US $44.16 |
||
|
2
|
2
44281-14H00-YU1 COVER,FUEL TANK,L |
44281-14H00-YU1 |
from US $44.16 |
||
|
3
|
3
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
4
|
4
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
|
5
|
5
09169-06081-000 WASHER |
09169-06081-000 |
from US $5.88 |
||
|
6
|
6
68110-14H10-KGH TAPE SET,FUEL TANK COVER,R |
68110-14H10-KGH |
from US $40.48 |
||
|
7
|
7
68120-14H10-KGH TAPE SET,FUEL TANK COVER,L |
68120-14H10-KGH |
from US $40.48 |
