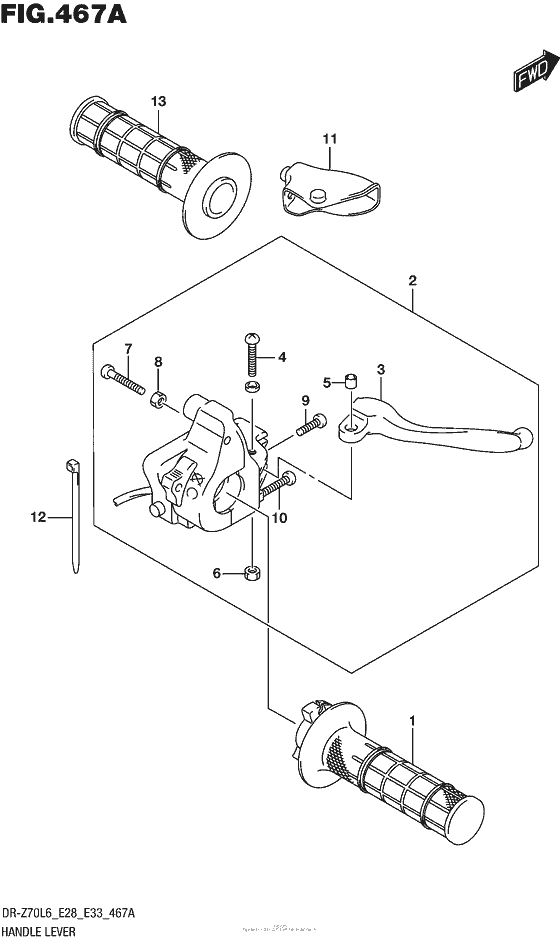

Handle Lever Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-14H00-000 GRIP,THROTTLE |
57110-14H00-000 |
from US $22.26 |
||
|
2
|
2
57300-14H01-000
LEVER ASSY,FR BRAKE
|
57300-14H01-000 |
— | ||
| replacement | |||||
|
2
|
2
57300-14H02-000 Lever Assy,fr Brake & Switch |
57300-14H02-000 |
from US $79.12 |
||
|
3
|
3
57421-14H00-000 LEVER,BRAKE |
57421-14H00-000 |
from US $19.20 |
||
|
4
|
4
02112-0525A-000 SCREW |
02112-0525A-000 |
from US $0.80 |
||
|
5
|
5
57435-12900-000 SPACER |
57435-12900-000 |
from US $1.52 |
||
|
6
|
6
08319-2105A-000 NUT |
08319-2105A-000 |
from US $0.81 |
||
|
7
|
7
02112-0525A-000 SCREW |
02112-0525A-000 |
from US $0.80 |
||
|
8
|
8
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
9
|
9
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
10
|
10
02112-0545B-000 SCREW |
02112-0545B-000 |
from US $2.08 |
||
|
11
|
11
57314-14H00-000
COVER,BRAKE LEVER
|
57314-14H00-000 |
— | ||
| replacement | |||||
|
11
|
11
57314-14H01-000 Cover,brake Lever |
57314-14H01-000 |
from US $5.30 |
||
|
12
|
12
09407-11401-000 CLAMP(L:95)Clamp, stator lead |
09407-11401-000 |
from US $1.76 |
||
|
13
|
13
57211-14H00-000 GRIP,L |
57211-14H00-000 |
from US $8.87 |
||
