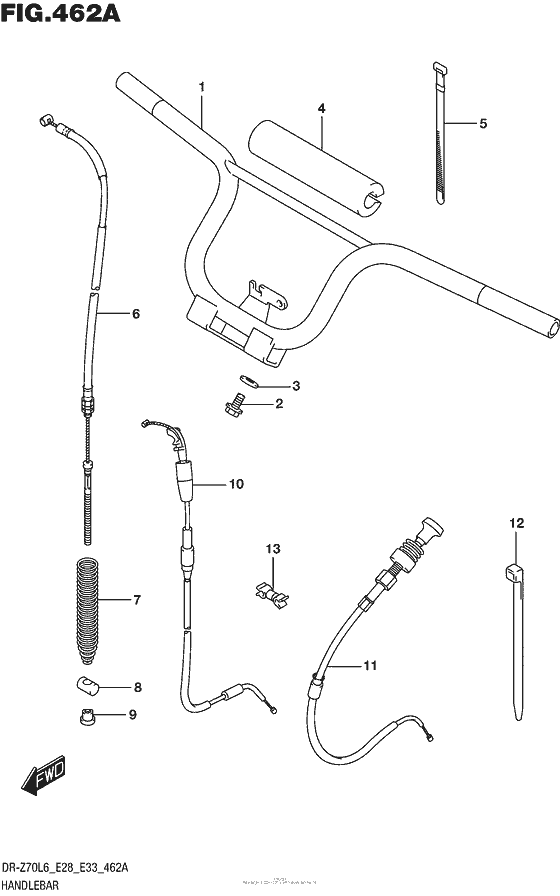

Handlebar Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-14H00-13L HANDLEBAR(SILVER) |
56110-14H00-13L |
from US $123.65 |
||
|
2
|
2
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
3
|
3
09160-08127-000 WASHER(8.5X22X2)Washer, fender front |
09160-08127-000 |
from US $1.12 |
||
|
4
|
4
56172-14H00-000 PAD,CROSS BAR |
56172-14H00-000 |
from US $24.10 |
||
|
5
|
5
09407-14401-000 CLAMPClamp, receptacle lead |
09407-14401-000 |
from US $5.13 |
||
|
6
|
6
58110-14H00-000
CABLE,FR BRAKE
|
58110-14H00-000 |
— | ||
| replacement | |||||
|
6
|
6
58110-14H01-000 Cable Comp,front Brake |
58110-14H01-000 |
from US $26.50 |
||
|
7
|
7
58162-14H00-000 SPRING,FR BRAKE CABLE |
58162-14H00-000 |
from US $4.05 |
||
|
8
|
8
09209-11002-000 PIN(11X18)Pin |
09209-11002-000 |
from US $1.48 |
||
|
9
|
9
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
10
|
10
58300-14H00-000
Cable assy,throttle
|
58300-14H00-000 |
— | ||
| replacement | |||||
|
10
|
10
58300-14H01-000 Cable assy,throttle |
58300-14H01-000 |
from US $26.50 |
||
|
11
|
11
58400-14H00-000 CABLE ASSY,STARTER |
58400-14H00-000 |
from US $29.26 |
||
|
12
|
12
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
13
|
13
09408-00049-000 CLAMP |
09408-00049-000 |
US $1.28 |
||
