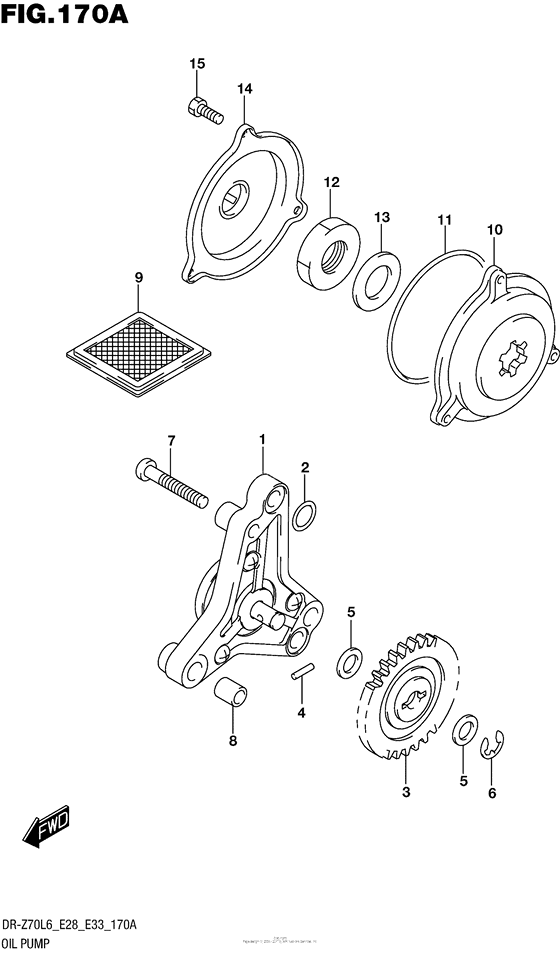

Oil pump Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-09403-000 PUMP ASSY,ENGINE OILPump assy, engine oil |
16400-09403-000 |
US $69.55 |
||
|
2
|
2
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
3
|
3
16331-09440-000 GEAR,OIL PUMP DRIVEN(NT:31) |
16331-09440-000 |
US $10.82 |
||
|
4
|
4
09261-02001-000 PIN(2.5X19.8) |
09261-02001-000 |
from US $0.77 |
||
|
5
|
5
09181-08139-000 SHIM(8.8X14X1)Washer, gear shaft |
09181-08139-000 |
from US $1.52 |
||
|
6
|
6
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.77 |
||
|
7
|
7
02112-0635A-000 SCREW |
02112-0635A-000 |
US $11 |
||
|
8
|
8
04211-09129-000 PINPin |
04211-09129-000 |
from US $0.96 |
||
|
9
|
9
16520-09402-000
STRAINER,ENGINE OIL
|
16520-09402-000 |
— | ||
| replacement | |||||
|
9
|
9
16520-09403-000 Strainer,engine Oil |
16520-09403-000 |
from US $7.04 |
||
|
10
|
10
16530-09411-000 CASE,ENGINE OIL FILTER |
16530-09411-000 |
from US $19.87 |
||
|
11
|
11
09280-60005-000 O RING(D:2.4,ID:60.5)O ring (d:2.4,id:60.5) |
09280-60005-000 |
from US $1.76 |
||
|
12
|
12
09140-16025-000 NUT |
09140-16025-000 |
from US $6.33 |
||
|
13
|
13
09164-16004-000 WASHER |
09164-16004-000 |
from US $2.99 |
||
|
14
|
14
16540-09D00-000 COVER,ENGINE OIL FILTERCover, oil filter |
16540-09D00-000 |
from US $16.04 |
||
|
15
|
15
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) |
09100-05019-000 |
from US $0.91 |
||
