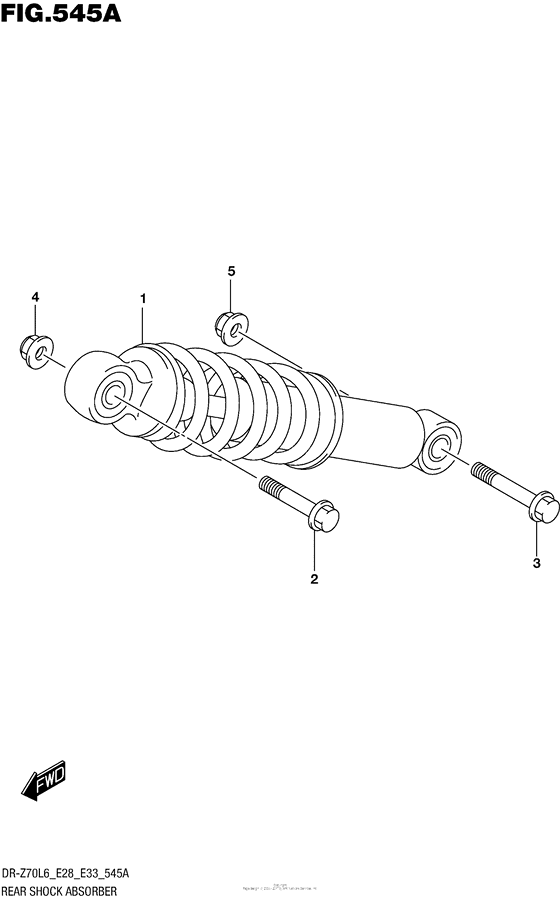

Rear Shock Absorber Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-14H00-019 ABSORBER ASSY,RR SHOCK |
62100-14H00-019 |
from US $191.36 |
||
|
2
|
2
09103-10019-000 BOLT(10X37)Bolt, shock absorber |
09103-10019-000 |
from US $1.82 |
||
|
3
|
3
09103-10116-000 BOLT(10X43)Bolt, lower |
09103-10116-000 |
from US $9.37 |
||
|
4
|
4
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
5
|
5
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
