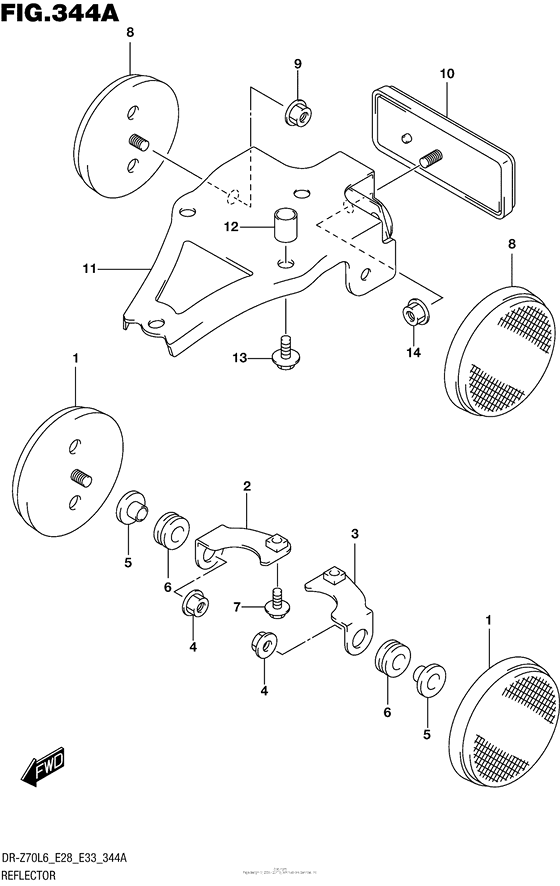

Reflector (Dr-Z70L6 E28) Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-14A20-000 REFLEX REFLECTORReflex reflector, fr, r |
35950-14A20-000 |
from US $9.86 |
||
|
2
|
2
35956-14H00-000 BRACKET,FR SIDE RR,R |
35956-14H00-000 |
US $6.51 |
||
|
3
|
3
35957-14H00-000 BRACKET,FR SIDE RR,L |
35957-14H00-000 |
US $6.51 |
||
|
4
|
4
09159-05049-000 NUT |
09159-05049-000 |
from US $0.80 |
||
|
5
|
5
09169-06063-000 WASHERWasher (6.3x17x6) |
09169-06063-000 |
from US $1.38 |
||
|
6
|
6
09320-08066-000 CUSHION |
09320-08066-000 |
from US $4.42 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
35970-14A20-000 REFLECTOR ASSY,RR SIDEReflector assy, side |
35970-14A20-000 |
from US $7.74 |
||
|
9
|
9
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
|
10
|
10
35970-07F01-000 REFLECTOR ASSY,RR |
35970-07F01-000 |
from US $10.42 |
||
|
11
|
11
35974-14H00-000 BRACKET,SIDE & RR REFL |
35974-14H00-000 |
US $9.79 |
||
|
12
|
12
09180-06291-000 SPACER(6.5X10X13) |
09180-06291-000 |
from US $1.92 |
||
|
13
|
13
02162-0625B-000 SCREW |
02162-0625B-000 |
from US $3.32 |
||
|
14
|
14
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
