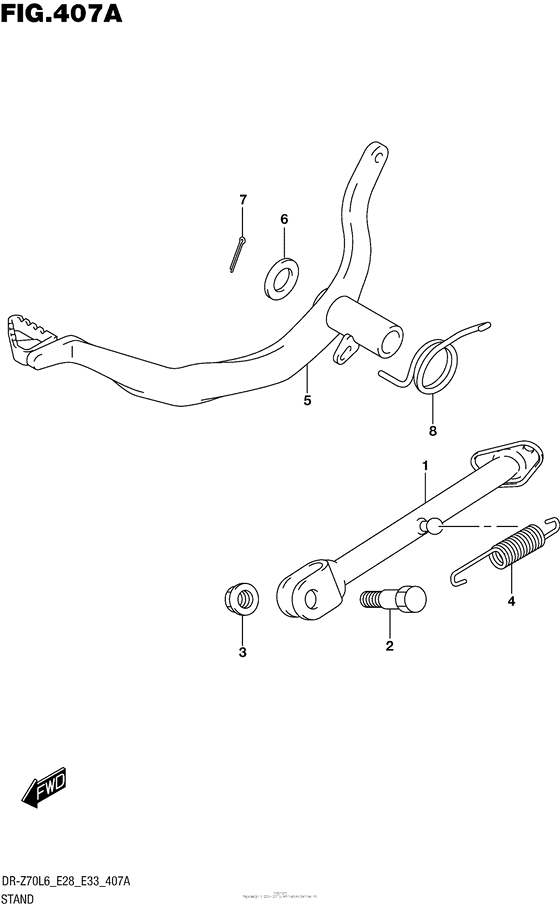

Stand Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-14H00-000 STAND,PROP |
42310-14H00-000 |
from US $29.26 |
||
|
2
|
2
09111-10060-000 BOLT(10X33) |
09111-10060-000 |
from US $6.58 |
||
|
3
|
3
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
4
|
4
09443-14069-000 SPRING |
09443-14069-000 |
from US $3.04 |
||
|
5
|
5
43110-14H00-000 PEDAL,BRAKE |
43110-14H00-000 |
from US $52.26 |
||
|
6
|
6
09160-15002-000 WASHER(15.5X26X2.3)Pedal lock washer |
09160-15002-000 |
from US $1.06 |
||
|
7
|
7
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
8
|
8
09448-31017-000 SPRING |
09448-31017-000 |
from US $5.17 |
