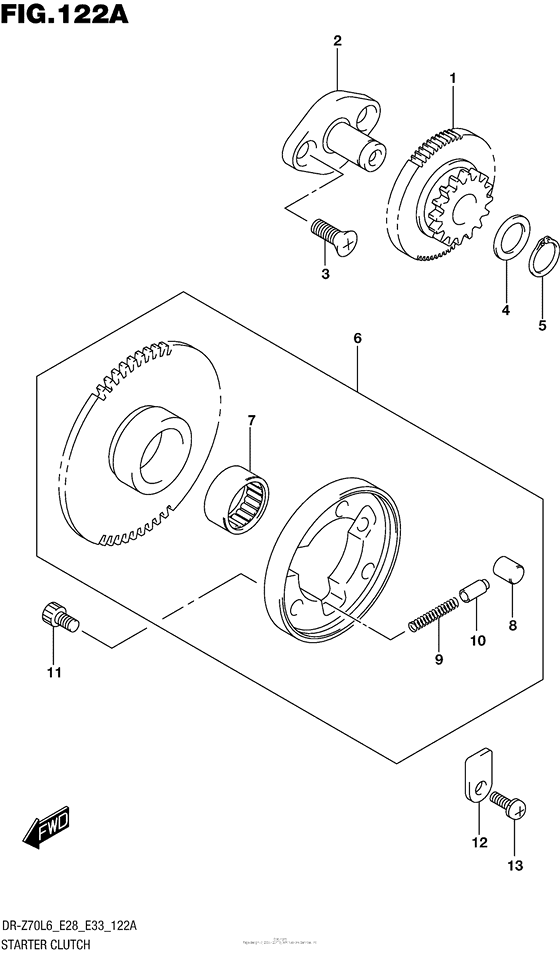

Starter Clutch Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12611-09410-000 GEAR,STARTER IDLE(NT:68/16) |
12611-09410-000 |
US $38.27 |
||
|
2
|
2
12612-23F01-000 SHAFT,STARTER IDLE GEAR |
12612-23F01-000 |
US $22.82 |
||
|
3
|
3
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
09160-13010-000 WASHER(13X20X1)Washer (13x20x1.0) |
09160-13010-000 |
from US $2.84 |
||
|
5
|
5
08331-31139-000 CIRCLIP |
08331-31139-000 |
US $11 |
||
|
6
|
6
12600-09855-000 Clutch Set, Starter |
12600-09855-000 |
from US $130.27 |
||
|
7
|
7
09263-17025-000 BEARING(17X25X15) |
09263-17025-000 |
US $15.16 |
||
|
8
|
8
09261-09002-000 PIN(9X10)Pin, rr brake case knock |
09261-09002-000 |
from US $4.76 |
||
|
9
|
9
09440-03004-000 SPRINGSpring |
09440-03004-000 |
from US $1.31 |
||
|
10
|
10
12633-05300-000 PIECE,STARTER CLUTCH PUSH |
12633-05300-000 |
from US $5.19 |
||
|
11
|
11
09106-06075-000 BOLT(6X12) |
09106-06075-000 |
from US $2.99 |
||
|
12
|
12
12629-09410-000 PLATE,STARTER CLUTCH GEAR |
12629-09410-000 |
US $1.18 |
||
|
13
|
13
02112-3612A-000 SCREW |
02112-3612A-000 |
from US $0.80 |
