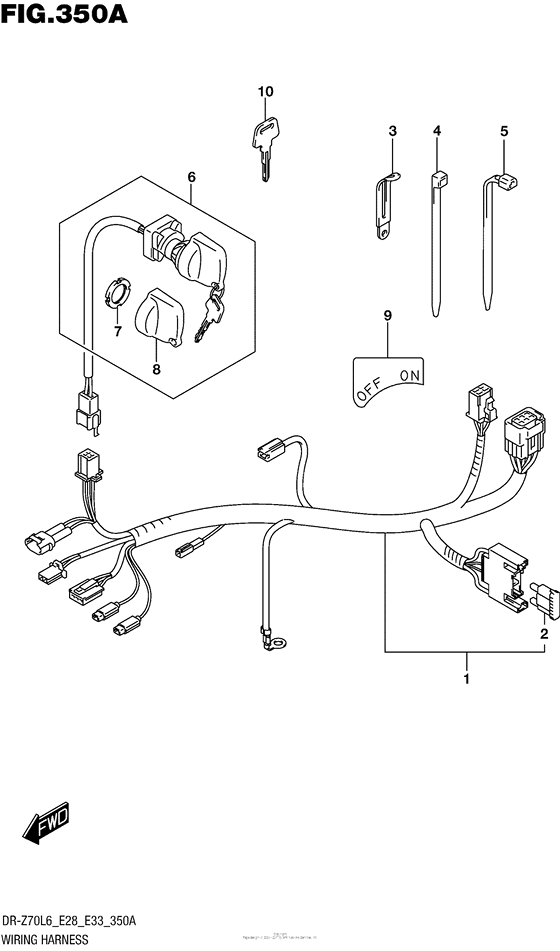

Wiring Harness (Dr-Z70L6 E28) Diagram Suzuki DR-Z70
- Year
- 2016
- Model code
- DR-Z70L6
- Sales region
- USA/ Canada
- Engine Capacity
- 70
- Model
- DR-Z70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-14H00-000
HARNESS,WIRING
|
36610-14H00-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-14H01-000 Harness,wiring |
36610-14H01-000 |
from US $75.81 |
||
|
2
|
2
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
3
|
3
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
4
|
4
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
5
|
5
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
6
|
6
37110-14H00-000
SWITCH ASSY,IGNITION
|
37110-14H00-000 |
— | ||
| replacement | |||||
|
6
|
6
37110-14H01-000 Switch Assy,ignition |
37110-14H01-000 |
from US $65.14 |
||
|
7
|
7
37112-24500-000 NUT,IGNITION SWITCH |
37112-24500-000 |
from US $9.12 |
||
|
8
|
8
37142-19B00-000
MASCOT,KEY
|
37142-19B00-000 |
— | ||
| replacement | |||||
|
8
|
8
37142-19B01-000 Mascot,key |
37142-19B01-000 |
from US $5.76 |
||
|
9
|
9
37139-09D30-000
PLATE CONTROL IDENTIFICATION
|
37139-09D30-000 |
— | ||
| replacement | |||||
|
9
|
9
37139-09D31-000 Plate,control Identification |
37139-09D31-000 |
from US $2.69 |
||
|
10-1
|
10-1
37146-09D00-000 KEY,BLANK(TYPE:C)Key, blank (type c) |
37146-09D00-000 |
from US $11.89 |
||
|
10-2
|
10-2
37146-09D10-000 KEY,BLANK(TYPE:D)Key, blank (type d) |
37146-09D10-000 |
from US $11.89 |
||
|
10-3
|
10-3
37146-09D20-000 KEY,BLANK(TYPE:E)Key, blank (type e) |
37146-09D20-000 |
from US $11.89 |
||
|
10-4
|
10-4
37146-09D30-000 KEY,BLANK(TYPE:F)Key, blank (type f) |
37146-09D30-000 |
from US $11.89 |
||
