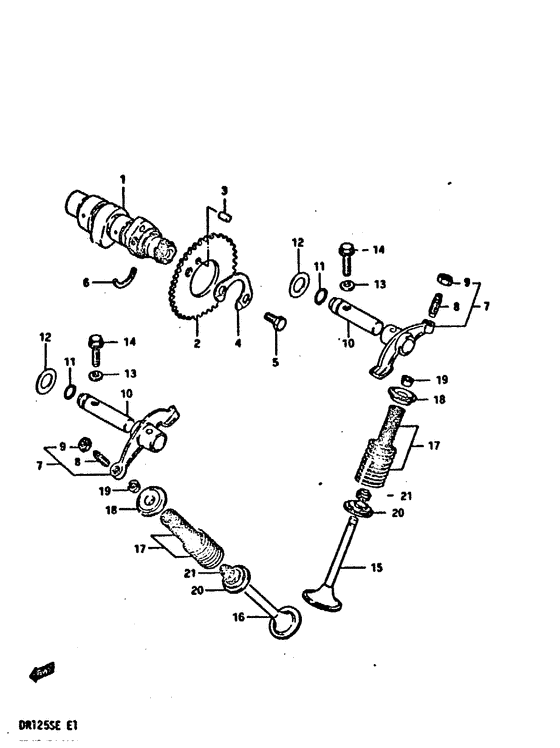

Cam shaft/valve Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-05201-000
Cam shaft
|
12711-05201-000 |
— | ||
| replacement | |||||
|
1
|
1
12711-05230-000 CAMSHAFT |
12711-05230-000 |
from US $127.70 |
||
|
2
|
2
12741-05201-000 SPROCKET,CAMSHAFTSprocket (nt:32) Sprocket (nt:32); |
12741-05201-000 |
from US $20.52 |
||
|
3
|
3
09261-05005-000 PIN(5X8)Knock pin Pin; |
09261-05005-000 |
from US $0.76 |
||
|
4
|
4
12747-05200-000 Washer, sprocket |
12747-05200-000 |
US $1.17 |
||
| replacement | |||||
|
4
|
4
12747-05202-000 WASHER,SPROCKET |
12747-05202-000 |
from US $1.87 |
||
|
5
|
5
09111-06032-000 BOLT(6X10.5) |
09111-06032-000 |
from US $1.87 |
||
|
6
|
6
09390-22002-000 C RINGC ring |
09390-22002-000 |
from US $1.06 |
||
|
7
|
7
12840-05200-000
Arm, valve rocker, 1n
|
12840-05200-000 |
— | ||
| replacement | |||||
|
7
|
7
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in |
12850-25C00-000 |
from US $28.88 |
||
|
8
|
8
12842-32410-000 Screw |
12842-32410-000 |
US $5.08 |
||
| replacement | |||||
|
8
|
8
12842-32411-000 SCREW,TAPPET ADJUSTING |
12842-32411-000 |
from US $4.80 |
||
|
9
|
9
12843-32400-000 NUT,ADJUSTING SCREW |
12843-32400-000 |
from US $1.60 |
||
|
10
|
10
12861-05201-000 SHAFT,VALVE ROCKETShaft, rocker arm Shaft, rocker arm; |
12861-05201-000 |
from US $7.14 |
||
|
11
|
11
09280-09004-000
O ring (d:1.9,id:8.8)
|
09280-09004-000 |
— | ||
| replacement | |||||
|
11
|
11
09280-09005-000 O RING(D:1.9,ID:8.6) |
09280-09005-000 |
from US $1.67 |
||
|
12
|
12
09164-12021-000 WASHER |
09164-12021-000 |
from US $1.52 |
||
|
13
|
13
09168-06015-000
Gasket
|
09168-06015-000 |
— | ||
| replacement | |||||
|
13
|
13
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
14
|
14
01517-06255-000
Bolt
|
01517-06255-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
15
|
15
12911-05211-000 Valve,intakeValve,intake (od:30) Valve, intake (od:30); |
12911-05211-000 |
from US $32.38 |
||
|
16
|
16
12912-05211-000 Valve,exhaustValve,exhaust (od:36) Valve, exheust (od:26); |
12912-05211-000 |
from US $47.10 |
||
|
17
|
17
12920-05210-000 SPRING SET,VALVESpring set, valve Valve spring set; |
12920-05210-000 |
from US $7.30 |
||
|
18
|
18
12931-49200-000
Retainer valve
Retainer, spring; |
12931-49200-000 |
— | ||
| replacement | |||||
|
18
|
18
12931-49201-000 RETAINER,VALVE SPRINGRetainer, spring; |
12931-49201-000 |
from US $4.96 |
||
|
19
|
19
12932-49200-000 COTTER VALVECotter, valve; |
12932-49200-000 |
from US $3.24 |
||
|
20
|
20
12933-49200-000 Seat, spring |
12933-49200-000 |
US $5.64 |
||
| replacement | |||||
|
20
|
20
12933-49201-000 SEAT,VALVE SPRINGSeat,valve spring |
12933-49201-000 |
from US $2.56 |
||
|
21
|
21
09289-05003-000
Oil seal
|
09289-05003-000 |
— | ||
| replacement | |||||
|
21
|
21
09289-05015-000 SEAL,OIL(5.5X11X8.2) |
09289-05015-000 |
from US $3.24 |
||
