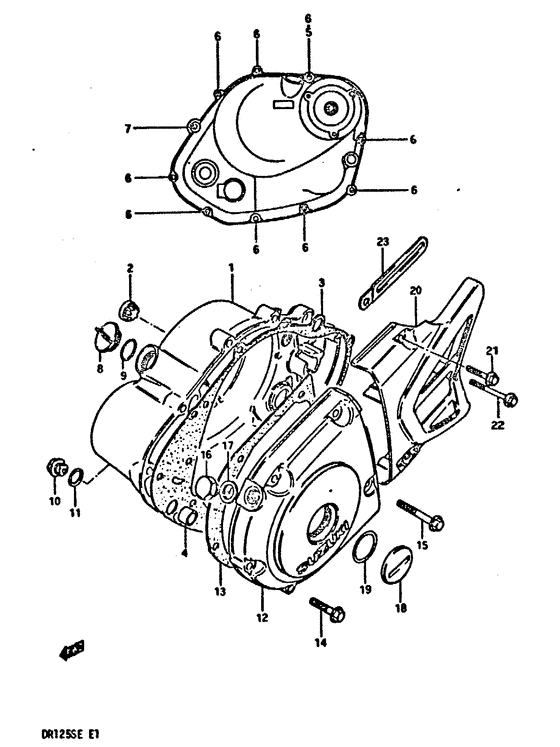

Crankcase cover Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-05211-000
Cover, Clutch
|
11340-05211-000 |
— | ||
| replacement | |||||
|
1
|
1
11340-05260-000
New Genuine Part
|
11340-05260-000 |
— | ||
|
2
|
2
11971-45010-000 LENS,OIL LEVEL CHECKLens, oil level; |
11971-45010-000 |
from US $9.50 |
||
|
3
|
3
11482-05200-000
Gasket
|
11482-05200-000 |
— | ||
| replacement | |||||
|
3
|
3
11482-05211-000 GASKET,CLUTCH COVERGasket, clutch cover |
11482-05211-000 |
from US $8.64 |
||
|
4
|
4
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
4
|
4
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
5
|
5
09168-06015-000
Gasket
|
09168-06015-000 |
— | ||
| replacement | |||||
|
5
|
5
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
6
|
6
01547-06304-000
Bolt
|
01547-06304-000 |
— | ||
| replacement | |||||
|
6
|
6
01547-06307-000 Bolt |
01547-06307-000 |
from US $0.96 |
||
|
7
|
7
01547-06454-000
Bolt (6x45)
|
01547-06454-000 |
— | ||
| replacement | |||||
|
7
|
7
01547-0645B-000 Bolt |
01547-0645B-000 |
from US $0.91 |
||
|
8
|
8
09259-20006-000
Plug, oil filler
|
09259-20006-000 |
— | ||
| replacements | |||||
|
8
|
8
09200-20810-000
PLUG SET
|
09200-20810-000 |
— | ||
|
8
|
8
09200-20811-000 Plug Set |
09200-20811-000 |
from US $2.24 |
||
|
9
|
9
09260-17003-000
O ring
|
09260-17003-000 |
— | ||
|
10
|
10
09247-14015-000 PLUG(14X12)Plug, tdc Plug, oil check; |
09247-14015-000 |
from US $3.35 |
||
|
11
|
11
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
12
|
12
11351-05210-000
Cover, magneto
|
11351-05210-000 |
— | ||
| replacement | |||||
|
12
|
12
11351-05260-000
COVER,MAGNETO
|
11351-05260-000 |
— | ||
|
13
|
13
11483-05200-000
Gasket, magneto cover (asb)
|
11483-05200-000 |
— | ||
| replacement | |||||
|
13
|
13
11483-05210-000 GASKET,MAGNETO COVER |
11483-05210-000 |
from US $5.59 |
||
|
14
|
14
01547-06304-000
Bolt
|
01547-06304-000 |
— | ||
| replacement | |||||
|
14
|
14
01547-06307-000 Bolt |
01547-06307-000 |
from US $0.96 |
||
|
15
|
15
01547-06404-000
Bolt
|
01547-06404-000 |
— | ||
| replacement | |||||
|
15
|
15
01547-0640B-000 Bolt |
01547-0640B-000 |
from US $0.91 |
||
|
16
|
16
09247-12103-000 PLUG(12X9)Plug, drain Plug, t.d.c; |
09247-12103-000 |
from US $1.98 |
||
|
17
|
17
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
18
|
18
09259-26002-000
Plug crankshaft
|
09259-26002-000 |
— | ||
| replacement | |||||
|
18
|
18
09259-26002-XC0 PLUG |
09259-26002-XC0 |
from US $15.35 |
||
|
19
|
19
09280-22008-000 O RING(D:3.1,ID:22.7) |
09280-22008-000 |
from US $1.67 |
||
|
20
|
20
11361-05210-000
Cover, engine sprocket
|
11361-05210-000 |
— | ||
| replacement | |||||
|
20
|
20
11361-05260-000
COVER,ENGINE SPROCKET
|
11361-05260-000 |
— | ||
|
21
|
21
01547-05255-000
Bolt
|
01547-05255-000 |
— | ||
| replacement | |||||
|
21
|
21
01547-0525B-000 Bolt |
01547-0525B-000 |
from US $4.10 |
||
|
22
|
22
01547-05455-000
Bolt 5x45
|
01547-05455-000 |
— | ||
| replacement | |||||
|
22
|
22
01547-0545B-000 Bolt |
01547-0545B-000 |
from US $7.80 |
||
|
23
|
23
09404-06415-000
Clamp, magneto cord (l:95)
|
09404-06415-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
23
|
23
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
23
|
23
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
23
|
23
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
