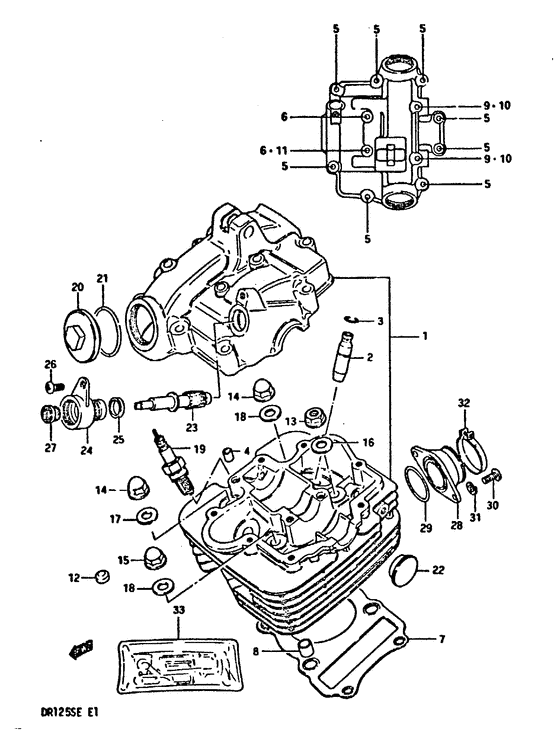

Cylinder head Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-05221-000
Cylinder head assy
|
11100-05221-000 |
— | ||
| replacements | |||||
|
1
|
1
12911-04B00-000 Valve,intake |
12911-04B00-000 |
from US $31.65 |
||
|
1
|
1
12912-24400-000 Valve,exhaust |
12912-24400-000 |
from US $38.27 |
||
|
1
|
1
12932-24400-000 COTTER,VALVE |
12932-24400-000 |
from US $1.17 |
||
|
1
|
1
11100-05223-000
Head,cylinder
|
11100-05223-000 |
— | ||
|
2
|
2
11115-05270-000 GUIDE,VALVEGuide, valve Guide, valve; |
11115-05270-000 |
from US $15.96 |
||
|
3
|
3
09381-10004-000 RING,SNAPRing, valve guide Ring, valve guide; |
09381-10004-000 |
from US $1.06 |
||
|
4
|
4
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
5
|
5
01517-06355-000
Bolt (6*35)
|
01517-06355-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
6
|
6
01517-06605-000
Bolt
|
01517-06605-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
7
|
7
11141-05201-000
Gasket,cylinder head
|
11141-05201-000 |
— | ||
| replacement | |||||
|
7
|
7
11141-05202-000 GASKET.CYLINDER HEADGasket, cylinder head |
11141-05202-000 |
from US $12.16 |
||
|
8
|
8
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
|
9
|
9
01421-06255-000
Stud 6x25
Stud bolt (6*25); |
01421-06255-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0625A-000 BOLT,STUDStud bolt (6*25); |
01421-0625A-000 |
from US $0.98 |
||
|
10
|
10
08316-16065-000
Nut
|
08316-16065-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
09168-06015-000
Gasket
|
09168-06015-000 |
— | ||
| replacement | |||||
|
11
|
11
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
12
|
12
11151-45000-000 PAD,CYLINDER HEADRubber pad cyl head Rubber pad; |
11151-45000-000 |
from US $2.13 |
||
|
13
|
13
09159-08031-000
Cylinder head n
Nut; |
09159-08031-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08034-000 NUTNut; |
09159-08034-000 |
from US $1.60 |
||
|
14
|
14
09159-08035-000
Nut
|
09159-08035-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08029-000 NUTCylinder head nut |
09159-08029-000 |
from US $9.06 |
||
|
15
|
15
09159-08029-000 NUTCylinder head nut Nut; |
09159-08029-000 |
from US $9.06 |
||
|
16
|
16
09160-08039-000 WASHER(8.5X19X2.3) STEEL |
09160-08039-000 |
from US $1.12 |
||
|
17
|
17
09160-08053-000
Washer cylinder (Steel)
Washer; |
09160-08053-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-08039-000 WASHER(8.5X19X2.3) STEELWasher; |
09160-08039-000 |
from US $1.12 |
||
|
18
|
18
09168-08012-000
Gasket (8.5x20x2.3)
|
09168-08012-000 |
— | ||
| replacement | |||||
|
18
|
18
09168-08013-000 GASKET(8.5X20X2.3) |
09168-08013-000 |
from US $2.28 |
||
|
19
|
19
09482-00144-000
Spark plug d8ea
Spark plug (ngk, dbea); |
09482-00144-000 |
— | ||
| replacement | |||||
|
19
|
19
09482-00399-000 PLUG,SPARK(DR8EA)Spark plug (ngk,dr8ea) Spark plug (ngk, dbea); |
09482-00399-000 |
from US $5.30 |
||
|
19
|
19
09482-00145-000
Spark plug x24e
Spark plug (no, x24es-u); |
09482-00145-000 |
— | ||
| replacement | |||||
|
19
|
19
09482-00223-000 PLUG,SPARK(X24ESR-U)Spark plug (denso,x24ers-u) Spark plug (no, x24es-u); |
09482-00223-000 |
from US $7.92 |
||
|
19
|
19
09482-00275-000
Spark plug (champion, a6yc)
Executed locally |
09482-00275-000 |
— | ||
| replacement | |||||
|
19
|
19
09482-00399-000 PLUG,SPARK(DR8EA)Spark plug (ngk,dr8ea) Executed locally |
09482-00399-000 |
from US $5.30 |
||
|
19
|
19
09482-00149-000
Spark plug dr8e
Spark plug (ngk, drbes-l); E2, e4, e6, e15, e18, e21 |
09482-00149-000 |
— | ||
| replacement | |||||
|
19
|
19
09482-00399-000 PLUG,SPARK(DR8EA)Spark plug (ngk,dr8ea) Spark plug (ngk, drbes-l); E2, e4, e6, e15, e18, e21 |
09482-00399-000 |
from US $5.30 |
||
|
19
|
19
09482-00223-000 PLUG,SPARK(X24ESR-U)Spark plug (denso,x24ers-u) Spark plug (no, x24esr-u); E2, e4, e6, e15, e18, e21 |
09482-00223-000 |
from US $7.92 |
||
|
20
|
20
11175-32400-000 Cap, inspection |
11175-32400-000 |
US $11.31 |
||
| replacement | |||||
|
20
|
20
11175-42A00-000 CAP,INSPECTIONCap, inspection |
11175-42A00-000 |
from US $15.45 |
||
|
21
|
21
09280-30001-000 O RING(D:3,ID:29.5)O ring; |
09280-30001-000 |
from US $1.51 |
||
|
22
|
22
09241-22002-000 PLUG(OD:22.5)Plug, head Plug, head; |
09241-22002-000 |
from US $2.58 |
||
|
23
|
23
26431-05200-000
Gear, tachometer driven
|
26431-05200-000 |
— | ||
| replacement | |||||
|
23
|
23
26431-05210-000 GEAR,TACHOMETER DRIVEN |
26431-05210-000 |
US $17.66 |
||
|
24
|
24
26441-49000-000 SLEEVE,TACHOMETER DRIVE GEARSleeve |
26441-49000-000 |
from US $26.40 |
||
|
25
|
25
26451-45000-000 BAND,DRIVEN GEAR SEAL |
26451-45000-000 |
from US $2.72 |
||
|
26
|
26
09126-05101-000
Screw
|
09126-05101-000 |
— | ||
|
27
|
27
09289-05002-000 SEAL,OIL(5X12X8) |
09289-05002-000 |
from US $7.76 |
||
|
28
|
28
13110-05200-000
PIPE,INTAKE
|
13110-05200-000 |
— | ||
|
29
|
29
09280-32006-000 O RING(D:2.4,ID:31.7)O ring; |
09280-32006-000 |
from US $1.61 |
||
|
30
|
30
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
30
|
30
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
30
|
30
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
31
|
31
08321-21065-000
Lock washer
|
08321-21065-000 |
— | ||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
32
|
32
09402-40305-000
Clamp
|
09402-40305-000 |
— | ||
| replacement | |||||
|
32
|
32
09402-40303-000 CLAMP |
09402-40303-000 |
from US $9.44 |
||
|
33
|
33
11400-05851-000
Gasket set
Opt |
11400-05851-000 |
— | ||
| replacement | |||||
|
33
|
33
11400-05855-000
GASKET SET
Opt |
11400-05855-000 |
— | ||
