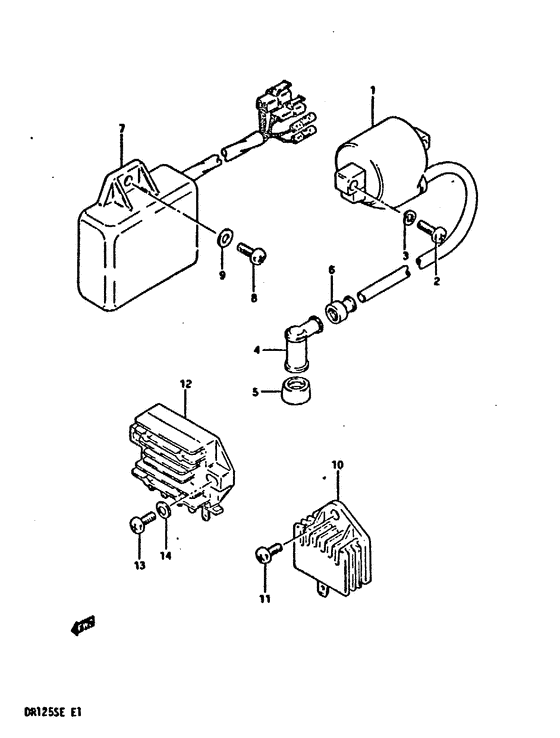

Electrical Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-05210-000 Coil assy, ignition |
33410-05210-000 |
US $56.56 |
||
| replacement | |||||
|
1
|
1
33410-01X50-000 COIL ASSY,IGNITIONCoil assy, ignition |
33410-01X50-000 |
from US $86.11 |
||
|
2
|
2
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
4
|
4
33510-22010-000 CAP ASSY,SPARK PLUG |
33510-22010-000 |
from US $10.34 |
||
| replacement | |||||
|
4
|
4
33510-97313-000 Cap,spark plug |
33510-97313-000 |
from US $19.87 |
||
|
5
|
5
33541-38210-000 SEAL,SPARK PLUG |
33541-38210-000 |
US $7.48 |
||
| replacement | |||||
|
5
|
5
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug |
33541-47D00-000 |
from US $4.26 |
||
|
6
|
6
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
6
|
6
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
7
|
7
32900-05210-000 CDI UNIT |
32900-05210-000 |
US $792.14 |
||
|
7
|
7
32900-05220-000 CDI UNITE2, e4, e15, e18, e21 |
32900-05220-000 |
US $351.44 |
||
|
8
|
8
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
8
|
8
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
8
|
8
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
9
|
9
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
32800-38200-000
RECTIFIER ASSY,REGULATOR
|
32800-38200-000 |
— | ||
|
11
|
11
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
12
|
12
32800-44130-000
Rectifier, regulator
E2, e4, e15, e18, e21 |
32800-44130-000 |
— | ||
| replacement | |||||
|
12
|
12
32800-33401-000
Rectifier Assy
E2, e4, e15, e18, e21 |
32800-33401-000 |
— | ||
|
13
|
13
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
14
|
14
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
14
|
14
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
