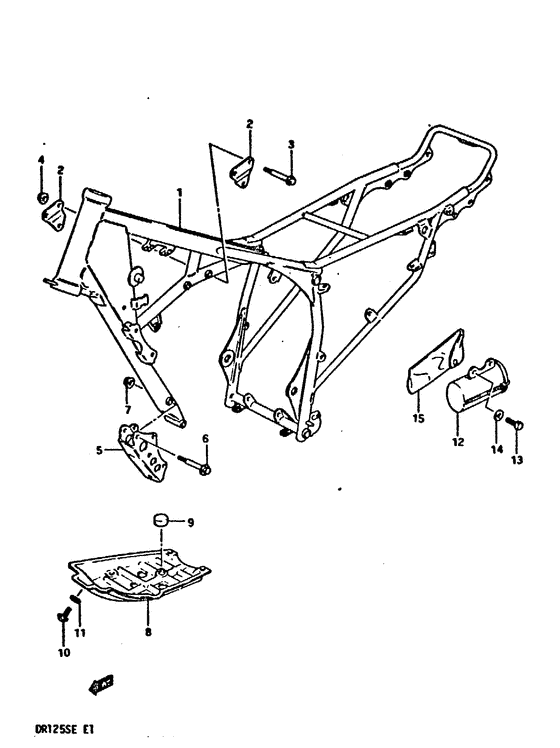

Frame Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-05201-19F
Frame (blue)
Frame (blue); For 019, 163, 10v |
41100-05201-19F |
— | ||
|
1
|
1
41100-05201-019
Frame (black)
For 14c, 05k |
41100-05201-019 |
— | ||
|
1
|
1
41100-05221-19F
Frame (blue)
Frame (blue); E15 for 019, 163, 10v |
41100-05221-19F |
— | ||
|
1
|
1
41100-05221-019
Frame (black)
Frame (black); E15 for 14c, 05k |
41100-05221-019 |
— | ||
|
1
|
1
41100-05231-19F
Frame (blue)
Frame (blue); E18 for 019, 163, 10v |
41100-05231-19F |
— | ||
|
1
|
1
41100-05231-019
Frame (black)
Frame (black); E18 for 14c, 05k |
41100-05231-019 |
— | ||
|
2
|
2
41991-05300-000
Plate,eng mount
|
41991-05300-000 |
— | ||
| replacement | |||||
|
2
|
2
41991-05302-000 PLATE,ENGINE MOUNT |
41991-05302-000 |
US $2.58 |
||
|
3
|
3
01517-08505-000
Boulon
|
01517-08505-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
08319-31085-000
Nut
|
08319-31085-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
5
|
5
41992-05200-000
Plate, lower
|
41992-05200-000 |
— | ||
| replacement | |||||
|
5
|
5
41992-05200-019
PLATE,ENGINE MOUNT LWR
|
41992-05200-019 |
— | ||
|
6
|
6
01517-08655-000
Bolt
|
01517-08655-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0865B-000 Bolt |
01550-0865B-000 |
from US $3.84 |
||
|
6
|
6
01550-0865A-000 BOLTBolt, oil pump (l) |
01550-0865A-000 |
from US $1.44 |
||
|
7
|
7
08319-31085-000
Nut
|
08319-31085-000 |
— | ||
| replacement | |||||
|
7
|
7
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
8
|
8
42510-05202-019
Protector, engine (black)
|
42510-05202-019 |
— | ||
| replacement | |||||
|
8
|
8
42510-05203-13L
Protector, engi
|
42510-05203-13L |
— | ||
|
9
|
9
09329-12003-000
CUSHION
|
09329-12003-000 |
— | ||
| replacement | |||||
|
9
|
9
09329-12007-000
Cushion
|
09329-12007-000 |
— | ||
|
10
|
10
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
11
|
11
09160-06069-000
Washer (6.5x16x1.2)
|
09160-06069-000 |
— | ||
| replacements | |||||
|
11
|
11
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.28 |
||
|
11
|
11
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $0.77 |
||
|
12
|
12
41551-38200-000
Holder tool
|
41551-38200-000 |
— | ||
| replacement | |||||
|
12
|
12
41551-38201-000 HOLDER,TOOL |
41551-38201-000 |
from US $19.87 |
||
|
13
|
13
01107-06168-000
Bolt
|
01107-06168-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-06167-000 BOLTBolt, fuel cooler |
01500-06167-000 |
from US $0.76 |
||
|
14
|
14
09160-06039-000 Washer |
09160-06039-000 |
US $1.12 |
||
| replacement | |||||
|
14
|
14
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
15
|
15
09800-00245-000
Tool assy
|
09800-00245-000 |
— | ||
| replacement | |||||
|
15
|
15
09800-21021-000
TOOL ASSY
|
09800-21021-000 |
— | ||
