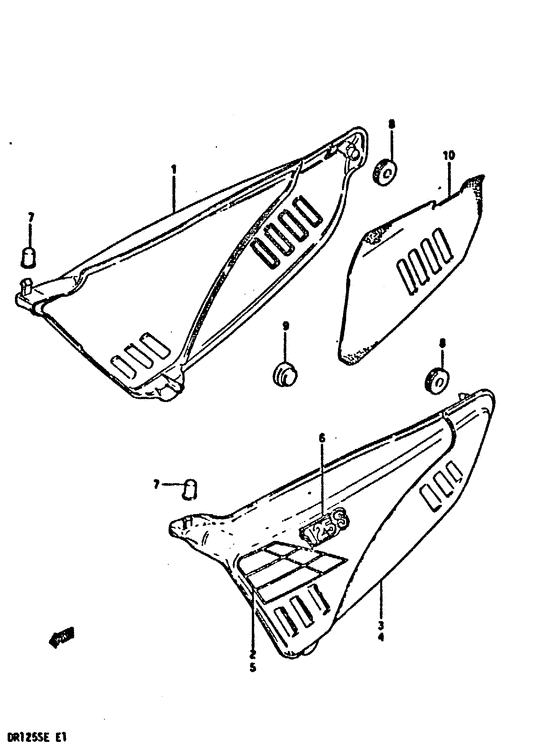

Frame cover Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-05212-019
Cover, frame rh (black)
Cover, frame rh (black); |
47111-05212-019 |
— | ||
|
1
|
1
47111-05212-05K
Cover, frame rh (blue)
Cover, frame rh (blue); |
47111-05212-05K |
— | ||
|
1
|
1
47111-05212-10V
Cover, frame rh (white)
Cover, frame rh (white); |
47111-05212-10V |
— | ||
|
1
|
1
47111-05212-14C
Cover, frame rh (red)
Cover, frame rh (red); |
47111-05212-14C |
— | ||
|
1
|
1
47111-05212-163
Cover, frame rh (yellow)
|
47111-05212-163 |
— | ||
|
2
|
2
68130-38230-88W
Tape set,frame cover rh
For 019 |
68130-38230-88W |
— | ||
|
2
|
2
68130-38230-7AU
Tape set,frame cover rh
For 05k |
68130-38230-7AU |
— | ||
|
2
|
2
68130-38230-67H
Tape set, frame cover rh
For 10v, 163 |
68130-38230-67H |
— | ||
| replacement | |||||
|
2
|
2
68130-38Z01-67H
New Genuine Part
For 10v, 163 |
68130-38Z01-67H |
— | ||
|
2
|
2
68130-38230-7AR
Tape set,frame cover rh
For 14c |
68130-38230-7AR |
— | ||
|
3
|
3
47211-05231-019
Cover, frame lh (black)
Cover, frame lh (black); |
47211-05231-019 |
— | ||
| replacement | |||||
|
3
|
3
47211-05231-000 COVER,FRAME,LCover, frame lh (black); |
47211-05231-000 |
US $47.10 |
||
|
3
|
3
47211-05231-05K
Cover, frame lh (blue)
Cover, frame lh (blue); |
47211-05231-05K |
— | ||
| replacement | |||||
|
3
|
3
47211-05231-000 COVER,FRAME,LCover, frame lh (blue); |
47211-05231-000 |
US $47.10 |
||
|
3
|
3
47211-05231-10V
Cover, frame lh (white)
Cover, frame lh (white); |
47211-05231-10V |
— | ||
| replacement | |||||
|
3
|
3
47211-05231-000 COVER,FRAME,LCover, frame lh (white); |
47211-05231-000 |
US $47.10 |
||
|
3
|
3
47211-05231-14C
Cover, frame lh (red)
Cover, frame lh (red); |
47211-05231-14C |
— | ||
| replacement | |||||
|
3
|
3
47211-05231-000 COVER,FRAME,LCover, frame lh (red); |
47211-05231-000 |
US $47.10 |
||
|
3
|
3
47211-05231-163
Cover, frame lh (yellow)
Cover, frame lh (yellow); |
47211-05231-163 |
— | ||
| replacement | |||||
|
3
|
3
47211-05231-000 COVER,FRAME,LCover, frame lh (yellow); |
47211-05231-000 |
US $47.10 |
||
|
4
|
4
47211-05221-019
Cover, frame lh (black)
Cover, frame lh (black); E2, e4, e15, e18, e21 |
47211-05221-019 |
— | ||
|
4
|
4
47211-05221-05K
Cover, frame lh (blue)
Cover, frame lh (blue); E2, e4, e15, e18, e21 |
47211-05221-05K |
— | ||
|
4
|
4
47211-05221-10V
Cover, frame, lh
Cover, frame lh (white); E2, e4, e15, e18, e21 |
47211-05221-10V |
— | ||
|
4
|
4
47211-05221-14C
Cover, frame lh (red)
Cover, frame lh (red); E2, e4, e15, e18, e21 |
47211-05221-14C |
— | ||
|
4
|
4
47211-05221-163
Cover, frame lh (yellow)
Cover, frame lh (yellow); E2, e4, e15, e18, e21 |
47211-05221-163 |
— | ||
|
5
|
5
68140-38230-88W
Tape set,frame cover lh
For 019 |
68140-38230-88W |
— | ||
|
5
|
5
68140-38230-7AU
Tape set,frame cover lh
For 05k |
68140-38230-7AU |
— | ||
|
5
|
5
68140-38230-67H
Tape set, frame cover lh
For 10v, 163 |
68140-38230-67H |
— | ||
|
5
|
5
68140-38230-7AR
Tape set,frame cover lh
For 14c |
68140-38230-7AR |
— | ||
|
6
|
6
68131-05110-73F
Emblem
|
68131-05110-73F |
— | ||
|
7
|
7
09320-03005-000
Cushion, front
|
09320-03005-000 |
— | ||
| replacement | |||||
|
7
|
7
09320-03004-000 CUSHION |
09320-03004-000 |
from US $1.76 |
||
|
8
|
8
09320-08018-000 CUSHIONCushion, lh Cushion, rear; |
09320-08018-000 |
from US $1.49 |
||
|
9
|
9
09321-10001-000 CUSHIONCenter stand stop Cushion, rh; |
09321-10001-000 |
from US $1.76 |
||
|
10
|
10
47122-05201-000
Heat shield, rh
|
47122-05201-000 |
— | ||
| replacement | |||||
|
10
|
10
47122-05202-000
New Genuine Part
|
47122-05202-000 |
— | ||
