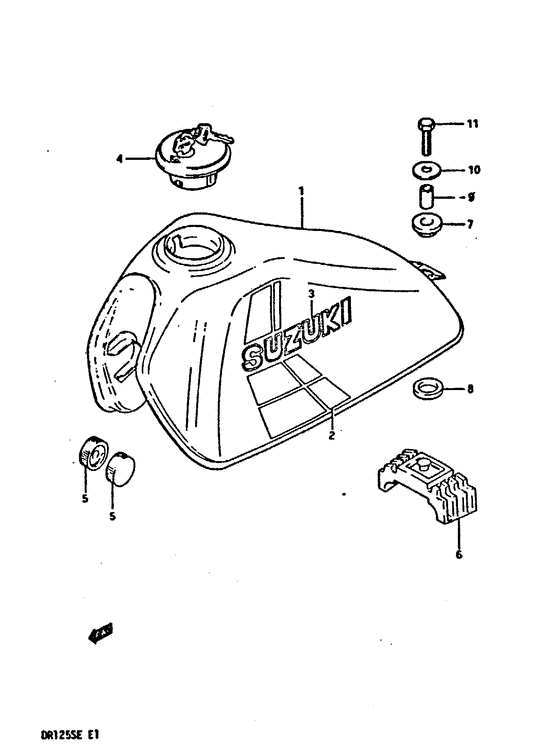

Fuel tank Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-05230-019
Tank assy, fuel (black)
Tank assy, fuel (black); |
49100-05230-019 |
— | ||
|
1
|
1
49100-05230-05K
Tank assy, fuel (blue)
Tank assy, fuel (blue); |
49100-05230-05K |
— | ||
|
1
|
1
49100-05230-10V
Tank assy, fuel (white)
Tank assy, fuel (white); |
49100-05230-10V |
— | ||
|
1
|
1
49100-05230-14C
Tank assy, fuel (red)
Tank assy, fuel (red); |
49100-05230-14C |
— | ||
|
1
|
1
49100-05230-163
Tank assy, fuel (yellow)
Tank assy, fuel (yellow); |
49100-05230-163 |
— | ||
|
2
|
2
68110-05290-88W
Tape set, fuel tank
For 019 |
68110-05290-88W |
— | ||
|
2
|
2
68110-05290-7AU
Tape set, fuel tank
For 05k |
68110-05290-7AU |
— | ||
|
2
|
2
68110-05290-67H
Tape set fuel t
For 10v, 163 |
68110-05290-67H |
— | ||
|
2
|
2
68110-05290-7AR
Tape set, fuel tank
For 14c |
68110-05290-7AR |
— | ||
|
3
|
3
68111-29310-064
EMBLEM,FUEL TANK(WHITE)
Emblem (white); For 019, 05k, 14c |
68111-29310-064 |
— | ||
|
3
|
3
68111-29310-019
Emblem (black)
For 10v, 163 |
68111-29310-019 |
— | ||
| replacement | |||||
|
3
|
3
68131-06C50-33J
Emblem,lid trun
For 10v, 163 |
68131-06C50-33J |
— | ||
|
4
|
4
44200-30516-KEY
Cap assy, fuel tank
|
44200-30516-KEY |
— | ||
| replacements | |||||
|
4
|
4
44200-30830-000
CAP SET,FUEL TANK
|
44200-30830-000 |
— | ||
|
4
|
4
44200-30832-000 New Genuine Part |
44200-30832-000 |
from US $92 |
||
|
5
|
5
09329-10007-000
CUSHION
Cushion, front; |
09329-10007-000 |
— | ||
| replacement | |||||
|
5
|
5
09329-10026-000 CushionCushion, front; |
09329-10026-000 |
from US $2.13 |
||
|
6
|
6
44542-05200-000
Cushion, upper rear
|
44542-05200-000 |
— | ||
|
7
|
7
09320-12010-000
Cushion, rear, no. 1
|
09320-12010-000 |
— | ||
| replacement | |||||
|
7
|
7
09320-12013-000 CUSHIONCushion, rear no.1 |
09320-12013-000 |
from US $1.98 |
||
|
8
|
8
09320-12023-000
Cushion, rear, no. 2
|
09320-12023-000 |
— | ||
| replacement | |||||
|
8
|
8
09320-12017-000 CUSHIONCushion, rear no.2 |
09320-12017-000 |
from US $1.68 |
||
|
9
|
9
09180-08067-000 SPACER(8.5X12X19)Spacer (l:19) |
09180-08067-000 |
from US $3.67 |
||
|
10
|
10
09160-00002-000
WASHER(104X110X2)
|
09160-00002-000 |
— | ||
|
11
|
11
01107-08308-000
Bolt
|
01107-08308-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-08307-000 Bolt |
01500-08307-000 |
from US $0.91 |
||
