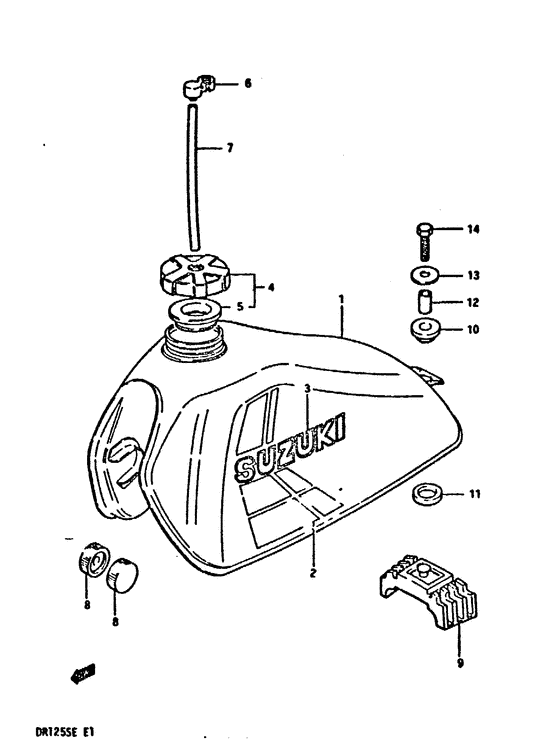

Fuel tank (E2, e4, e15, e18, e21) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-05210-019
Tank assy, fuel (black)
Tank assy, fuel (black); |
49100-05210-019 |
— | ||
|
1
|
1
49100-05210-05K
Tank assy, fuel (blue)
Tank assy, fuel (blue); |
49100-05210-05K |
— | ||
|
1
|
1
49100-05210-10V
Tank assy, fual (white)
|
49100-05210-10V |
— | ||
| replacement | |||||
|
1
|
1
44110-05212-YD8
Tank assy,fuel
|
44110-05212-YD8 |
— | ||
|
1
|
1
49100-05210-14C
Tank assy, fuel (rad)
Tank assy, fuel (rad); |
49100-05210-14C |
— | ||
|
1
|
1
49100-05210-163
Tank assy, fuel (yellow)
Tank assy, fuel (yellow); |
49100-05210-163 |
— | ||
|
2
|
2
68110-05290-88W
Tape set, fuel tank
For 019 |
68110-05290-88W |
— | ||
|
2
|
2
68110-05290-7AU
Tape set, fuel tank
For 05k |
68110-05290-7AU |
— | ||
|
2
|
2
68110-05290-67H
Tape set fuel t
For 10v, 163 |
68110-05290-67H |
— | ||
|
2
|
2
68110-05290-7AR
Tape set, fuel tank
For 14c |
68110-05290-7AR |
— | ||
|
3
|
3
68111-29310-064
EMBLEM,FUEL TANK(WHITE)
Emblen (white); For 019, 05k, 14c |
68111-29310-064 |
— | ||
|
3
|
3
68111-29310-019
Emblem (black)
For 10v, 163 |
68111-29310-019 |
— | ||
| replacement | |||||
|
3
|
3
68131-06C50-33J
Emblem,lid trun
For 10v, 163 |
68131-06C50-33J |
— | ||
|
4
|
4
44200-05812-000
CAP SET,FUEL TANK
|
44200-05812-000 |
— | ||
|
5
|
5
44248-05210-000
GASKET
|
44248-05210-000 |
— | ||
| replacement | |||||
|
5
|
5
44248-05211-000 Gasket |
44248-05211-000 |
from US $2.38 |
||
|
6
|
6
44486-32101-000 CLAMP,FUEL TANK BREATHER HOSE |
44486-32101-000 |
from US $1.67 |
||
|
7
|
7
09343-05129-000
Hose, fuel (l:240)
|
09343-05129-000 |
— | ||
| replacements | |||||
|
7
|
7
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
7
|
7
09352-50823-600
HOSE(5X8.2X600)
|
09352-50823-600 |
— | ||
|
7
|
7
09352-50005-600 Hose(5X8.2X600) |
09352-50005-600 |
US $4.10 |
||
|
8
|
8
09329-10007-000
CUSHION
Cushion, front; |
09329-10007-000 |
— | ||
| replacement | |||||
|
8
|
8
09329-10026-000 CushionCushion, front; |
09329-10026-000 |
from US $2.13 |
||
|
9
|
9
44542-05200-000
Cushion, upper rear
|
44542-05200-000 |
— | ||
|
10
|
10
09320-12010-000
Cushion, rear, no. 1
|
09320-12010-000 |
— | ||
| replacement | |||||
|
10
|
10
09320-12013-000 CUSHIONCushion, rear no.1 |
09320-12013-000 |
from US $1.98 |
||
|
11
|
11
09320-12023-000
Cushion, rear, no. 2
|
09320-12023-000 |
— | ||
| replacement | |||||
|
11
|
11
09320-12017-000 CUSHIONCushion, rear no.2 |
09320-12017-000 |
from US $1.68 |
||
|
12
|
12
09180-08067-000 SPACER(8.5X12X19)Spacer (l:19) |
09180-08067-000 |
from US $3.67 |
||
|
13
|
13
09160-08002-000
Washer
|
09160-08002-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support |
09160-08135-000 |
from US $0.95 |
||
|
14
|
14
01107-08306-000
Bolt
|
01107-08306-000 |
— | ||
| replacement | |||||
|
14
|
14
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
