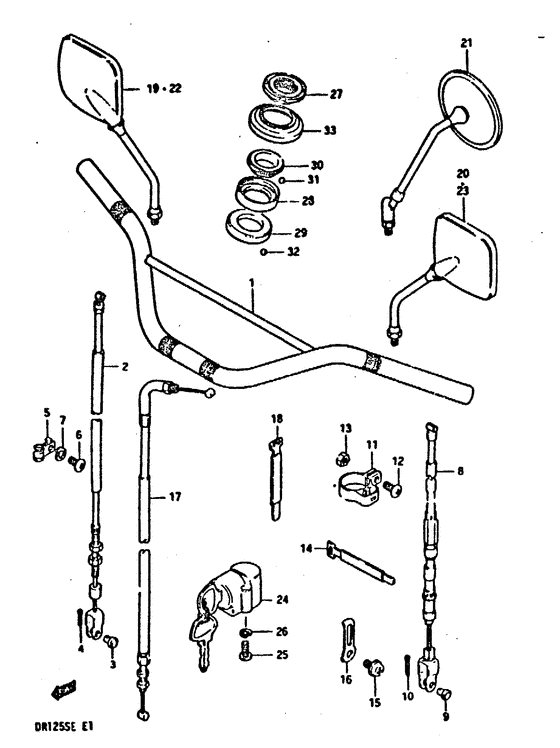

Handlebar Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-05201-291
Handle bar
|
56110-05201-291 |
— | ||
|
2
|
2
58110-05200-000
Cable comp, front brake
|
58110-05200-000 |
— | ||
| replacement | |||||
|
2
|
2
58110-29303-000 CABLE,FR BRAKECable, front brake |
58110-29303-000 |
US $46.55 |
||
|
3
|
3
09200-05001-000 PIN(L:17.5) |
09200-05001-000 |
from US $1.22 |
||
|
4
|
4
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
4
|
4
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
5
|
5
58621-14201-000 CLAMP,FR BRAKE CABLEClamp, front brake cable Clamp, front brake cable; |
58621-14201-000 |
from US $2.88 |
||
|
6
|
6
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
7
|
7
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
8
|
8
58200-05201-000
CABLE ASSY,CLUTCH
|
58200-05201-000 |
— | ||
|
9
|
9
09200-06011-000
PIN(L:15)
Pin; |
09200-06011-000 |
— | ||
|
10
|
10
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
10
|
10
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
11
|
11
58285-05350-000
Clamp, clutch cable no.2
|
58285-05350-000 |
— | ||
| replacement | |||||
|
11
|
11
58285-05351-000 CLAMP,CLUTCH CABLEClamp, clutch cable no.2 |
58285-05351-000 |
from US $2.69 |
||
|
12
|
12
02112-05165-000
Screw
|
02112-05165-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-05164-000 SCREWScrew, rect & relay cover |
02112-05164-000 |
from US $3.59 |
||
|
13
|
13
08310-22058-000
Nut
|
08310-22058-000 |
— | ||
| replacement | |||||
|
13
|
13
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
14
|
14
08407-18301-000
Clamp
|
08407-18301-000 |
— | ||
|
15
|
15
02152-06108-000
Screw
|
02152-06108-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
15
|
15
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
16
|
16
58285-05201-000
Clamp cable
Clamp, no. 3; |
58285-05201-000 |
— | ||
|
17
|
17
58300-05200-000
Cable assy,throttle
|
58300-05200-000 |
— | ||
| replacement | |||||
|
17
|
17
58300-05201-000
Cable assy,throttle
|
58300-05201-000 |
— | ||
|
18
|
18
09407-18301-000
CLAMP
Clamp; |
09407-18301-000 |
— | ||
| replacement | |||||
|
18
|
18
09407-18302-000 ClampClamp; |
09407-18302-000 |
from US $2.08 |
||
|
19
|
19
56500-01A00-000
Mirror assy, rear view rh
|
56500-01A00-000 |
— | ||
| replacement | |||||
|
19
|
19
56500-01A80-000
Mirror assy, rr
|
56500-01A80-000 |
— | ||
|
20
|
20
56600-01A00-000
Mirror assy, rear view lh
|
56600-01A00-000 |
— | ||
|
21
|
21
56500-06010-000
Mirror assy, rear view
E2, e4, e21 |
56500-06010-000 |
— | ||
|
22
|
22
56500-01A20-000
Mirror assy,rear view,rh
E18, e24 |
56500-01A20-000 |
— | ||
| replacement | |||||
|
22
|
22
56500-13A11-000 MIRROR ASSY,RR VIEW,RE18, e24 |
56500-13A11-000 |
from US $206.08 |
||
|
23
|
23
56600-01A20-000
Mirror assy,rear view,lh
E18, e24 |
56600-01A20-000 |
— | ||
| replacement | |||||
|
23
|
23
56600-13A11-000 MIRROR ASSY,RR VIEW,LE18, e24 |
56600-13A11-000 |
from US $206.08 |
||
|
24
|
24
51910-25311-000 LOCK ASSY,STEERINGLock assy, steering |
51910-25311-000 |
from US $24.32 |
||
|
25
|
25
02112-05128-000
Screw
|
02112-05128-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-05127-000 SCREWScrew, vacuum sw valve |
02112-05127-000 |
from US $0.76 |
||
|
26
|
26
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
27
|
27
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.36 |
||
|
28
|
28
51611-20002-000 RACE,STEERING INNER UPRRace, inner Race, inner upper; |
51611-20002-000 |
from US $6.08 |
||
|
29
|
29
51611-33002-000 RACE,STEERING INNER LWRRace, inner lower Race, inner lower; |
51611-33002-000 |
from US $8.16 |
||
|
30
|
30
51621-28000-000 RACE,STEERING OUTER UPRRace, outer upper Race, outer upper; |
51621-28000-000 |
from US $6.40 |
||
|
31
|
31
06111-06003-000 BALLSteel ball; |
06111-06003-000 |
from US $0.76 |
||
|
32
|
32
06111-08003-000 BALLSteel ball lower Steel ball; |
06111-08003-000 |
from US $0.77 |
||
|
33
|
33
51643-25001-000 DUST SEAL,STEERING UPRSeal, dust Dust seal, steering upper; |
51643-25001-000 |
from US $2.13 |
||
