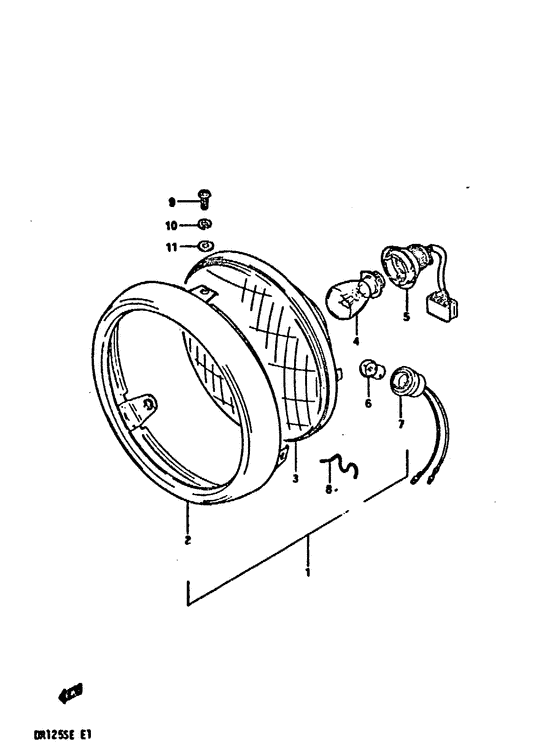

Headlamp (E1, e2, e6, e24) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-32510-000
Headlamp assy
E1, e6 |
35100-32510-000 |
— | ||
|
1
|
1
35100-38220-000
Headlamp assy
E2 |
35100-38220-000 |
— | ||
|
1
|
1
35100-37120-000
Headlamp assy
E24 |
35100-37120-000 |
— | ||
|
2
|
2
35111-26440-000
Rim
|
35111-26440-000 |
— | ||
|
3
|
3
35121-32400-000
Unit
Unit; E1, e6 |
35121-32400-000 |
— | ||
|
3
|
3
35121-44270-000
LAMP UNIT
E2 |
35121-44270-000 |
— | ||
|
3
|
3
35121-32440-000
Unit
E24 |
35121-32440-000 |
— | ||
|
4
|
4
09471-06043-000
BULB(6V,35/35W)
Bulb (6v, 35/35w); E1, e6, e24 |
09471-06043-000 |
— | ||
|
4
|
4
09471-12044-000
Bulb (12v, 45/45w)
Bulb (12v, 45/45w); E2 |
09471-12044-000 |
— | ||
| replacement | |||||
|
4
|
4
09471-12212-000
BULB(12V45/45W)
Bulb (12v, 45/45w); E2 |
09471-12212-000 |
— | ||
|
5
|
5
35171-44270-000
SOCKET
|
35171-44270-000 |
— | ||
|
6
|
6
09471-12001-000 SPEEDOMETER BULB(12V3.4W,STANLEY,A72A)Bulb (12v,3.4w) Bulb (12v, 3.4w); E2 |
09471-12001-000 |
from US $1.92 |
||
|
6
|
6
09471-06002-000 BULB(6V/3W)Bulb Bulb (6v, 3w); E24 |
09471-06002-000 |
from US $2.21 |
||
|
7
|
7
36118-30500-000
SOCKET
Sokcet; E2, e24 |
36118-30500-000 |
— | ||
|
8
|
8
35172-33630-000
SPRING
|
35172-33630-000 |
— | ||
|
9
|
9
02112-04125-000
Screw
|
02112-04125-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
10
|
10
08321-21045-000
Lock washer
|
08321-21045-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
11
|
11
08322-21045-000
Washer
|
08322-21045-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
11
|
11
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
