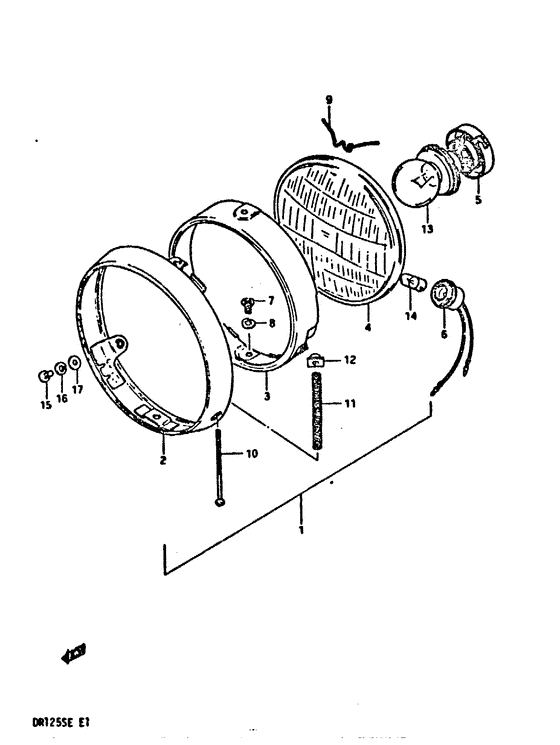

Headlamp (E4, e15, e18, e21) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-38240-999
Headlamp assy
E4 |
35100-38240-999 |
— | ||
|
1
|
1
35100-38250-999
Headlamp assy
E15, e18, e21 |
35100-38250-999 |
— | ||
|
2
|
2
35111-37130-000
Rim head lamp
|
35111-37130-000 |
— | ||
|
3
|
3
35127-29610-000
Head lamp retai
|
35127-29610-000 |
— | ||
|
4
|
4
35121-44280-000
Unit
E4 |
35121-44280-000 |
— | ||
| replacement | |||||
|
4
|
4
35121-44260-000
LAMP UNIT
E4 |
35121-44260-000 |
— | ||
|
4
|
4
35121-44260-000
LAMP UNIT
E15, e18, e21 |
35121-44260-000 |
— | ||
|
5
|
5
35136-34670-000
SETTER,BULB
Setter, bulb; |
35136-34670-000 |
— | ||
|
6
|
6
36118-30500-000
SOCKET
|
36118-30500-000 |
— | ||
|
7
|
7
35136-29610-000
SCREW
|
35136-29610-000 |
— | ||
|
8
|
8
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
9
|
9
35128-46720-000
SPRING
Spring, set; |
35128-46720-000 |
— | ||
|
10
|
10
35151-44260-000
Screw
|
35151-44260-000 |
— | ||
| replacement | |||||
|
10
|
10
35151-31610-000
SCREW
|
35151-31610-000 |
— | ||
|
11
|
11
35154-33630-000
SPRING
|
35154-33630-000 |
— | ||
|
12
|
12
35152-15611-000 NUTNut |
35152-15611-000 |
from US $2.17 |
||
|
13
|
13
09471-12049-000
Bulb (12v,45/40w)
Bulb (12v, 45/40w); E4, executed locally |
09471-12049-000 |
— | ||
|
13
|
13
09471-12048-000 BULB(12V45/40W)Bulb (12v,45/40w) Bulb (12v, 45/40w); E15, e18, e21 executed locally |
09471-12048-000 |
US $182.20 |
||
|
14
|
14
09471-12063-000 BULB(12V4W)Bulb (12v, 4w); Executed locally |
09471-12063-000 |
US $5.33 |
||
|
15
|
15
02112-04125-000
Screw
|
02112-04125-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
16
|
16
08321-21045-000
Lock washer
|
08321-21045-000 |
— | ||
| replacement | |||||
|
16
|
16
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
17
|
17
08322-21045-000
Washer
|
08322-21045-000 |
— | ||
| replacements | |||||
|
17
|
17
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
17
|
17
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
