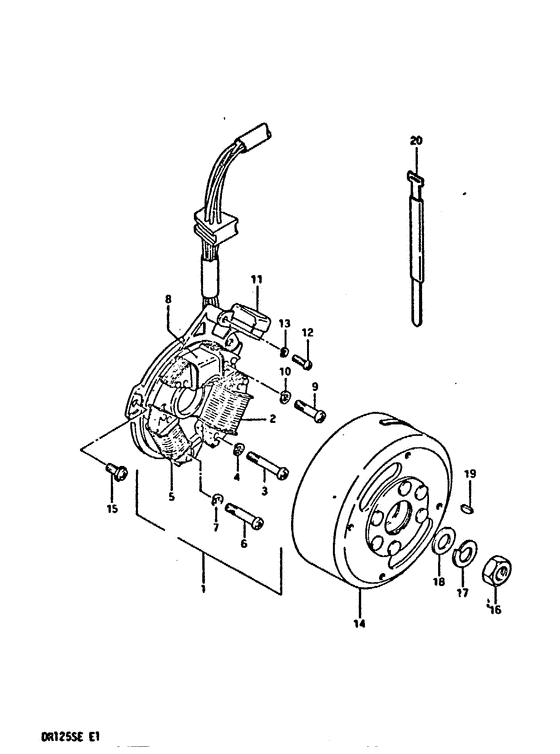

Magneto Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-05210-000
Stator assy
|
32101-05210-000 |
— | ||
|
2
|
2
32120-05210-000
COIL,LIGHTING
|
32120-05210-000 |
— | ||
|
3
|
3
02112-05358-000
Screw
|
02112-05358-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-05357-000 SCREWScrew 5x35 |
02112-05357-000 |
from US $0.77 |
||
|
4
|
4
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
5
|
5
32130-05210-000
Coil,charging
|
32130-05210-000 |
— | ||
|
6
|
6
02112-05308-000
Screw
|
02112-05308-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0530A-000 SCREW |
02112-0530A-000 |
from US $0.76 |
||
|
7
|
7
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
8
|
8
32140-05210-000 COIL,IGNITION PRIMARYCoil, ingition primary |
32140-05210-000 |
US $131.22 |
||
|
9
|
9
02112-05258-000
Screw
|
02112-05258-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-05257-000 SCREW |
02112-05257-000 |
from US $0.77 |
||
|
10
|
10
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
11
|
11
32150-05210-000
Coil, pickup
|
32150-05210-000 |
— | ||
| replacement | |||||
|
11
|
11
32150-22A01-000 COIL,PICK UPSensor, timing |
32150-22A01-000 |
from US $63.20 |
||
|
12
|
12
02112-04128-000
Screw
|
02112-04128-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
13
|
13
08321-21048-000
Lock washer
|
08321-21048-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
14
|
14
32102-05210-000
Rotor assy
|
32102-05210-000 |
— | ||
|
15
|
15
09139-05011-000 SCREW(5X14)Screw |
09139-05011-000 |
from US $1.52 |
||
|
16
|
16
09140-10003-000
Magneto fitting nut
|
09140-10003-000 |
— | ||
| replacement | |||||
|
16
|
16
09140-10041-000 NUT |
09140-10041-000 |
from US $1.96 |
||
|
17
|
17
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
18
|
18
08322-21108-000
Washer, wheel set
|
08322-21108-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
19
|
19
08341-31039-000 KEYKey; |
08341-31039-000 |
from US $1.60 |
||
|
20
|
20
09407-11301-000
Clamp (l:110)
|
09407-11301-000 |
— | ||
| replacements | |||||
|
20
|
20
09407-18301-000
CLAMP
|
09407-18301-000 |
— | ||
|
20
|
20
09407-18302-000 Clamp |
09407-18302-000 |
from US $2.08 |
||
