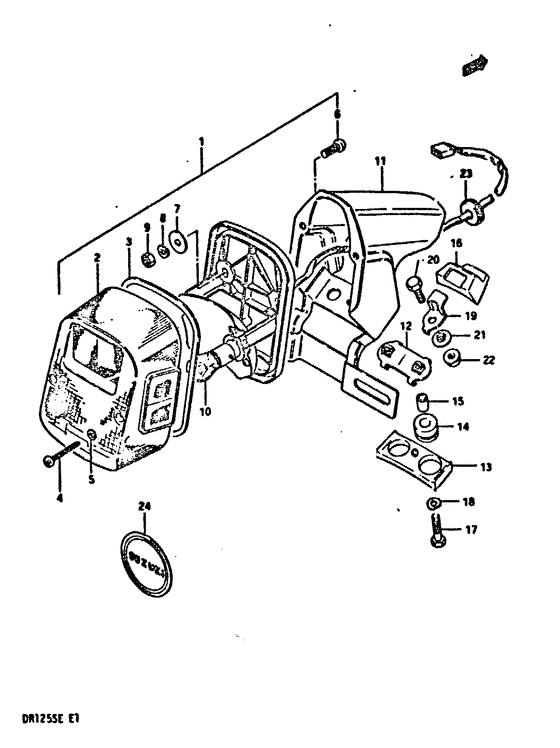

Rear combination lamp (E1, e4, e6, e15, e21, e24) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35720-38200-999
LAMP UNIT,RR COMBNATION
E1, e6, e24 |
35720-38200-999 |
— | ||
|
1
|
1
35720-38220-000
Lamp unit, rear combination
E4, e15, e21 |
35720-38220-000 |
— | ||
| replacement | |||||
|
1
|
1
35720-48750-000 LAMP UNIT,RR COMBNATIONE4, e15, e21 |
35720-48750-000 |
US $121.44 |
||
|
2
|
2
35712-38210-000
LENS
E1, e6, e24 |
35712-38210-000 |
— | ||
|
2
|
2
35712-38221-000
Lens
E4, e15, e21 |
35712-38221-000 |
— | ||
| replacement | |||||
|
2
|
2
35712-48750-000 LENSE4, e15, e21 |
35712-48750-000 |
US $38.27 |
||
|
3
|
3
35713-38210-000
Gasket
|
35713-38210-000 |
— | ||
|
4
|
4
03211-04258-000
Screw
|
03211-04258-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
5
|
5
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
6
|
6
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
7
|
7
35727-36510-000
Washer
|
35727-36510-000 |
— | ||
| replacement | |||||
|
7
|
7
09160-05501-000 WASHER(5.5X20X1.2)Washer (5.5x20x1.2) |
09160-05501-000 |
from US $0.76 |
||
|
8
|
8
08321-21058-000
Lock washer
|
08321-21058-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
9
|
9
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
|
10
|
10
09471-06008-000 BULB(6V10/3W,STANLEY,A4854H)Bulb (6v, 10/3w); E1, e6, e24 |
09471-06008-000 |
US $42.70 |
||
|
10
|
10
09471-12057-000
Bulb (12v, 21/5w)
Bulb (12v, 21/5w); E4, e15, e21 |
09471-12057-000 |
— | ||
| replacements | |||||
|
10
|
10
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v, 21/5w); E4, e15, e21 |
09471-12128-000 |
from US $7.20 |
||
|
10
|
10
09471-12083-000 BULB(12V21/5W)Bulb (12v, 21/5w); E4, e15, e21 |
09471-12083-000 |
from US $4.75 |
||
|
11
|
11
35730-05210-000
BRACKET UNIT,TAIL LAMP
E1, e6, e24 |
35730-05210-000 |
— | ||
|
11
|
11
35730-38210-000
BRACKET UNIT,TAIL LAMP
E4, e15, e21 |
35730-38210-000 |
— | ||
|
12
|
12
35716-38210-000
PLATE
|
35716-38210-000 |
— | ||
|
13
|
13
35765-38210-000
CUSHION
|
35765-38210-000 |
— | ||
|
14
|
14
35765-30950-000 CUSHION |
35765-30950-000 |
from US $14.09 |
||
|
15
|
15
35766-38210-000 SPACER |
35766-38210-000 |
US $1.14 |
||
|
16
|
16
35717-38210-000
Cushion
|
35717-38210-000 |
— | ||
|
17
|
17
01107-06308-000
Bolt
|
01107-06308-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-06307-000 Bolt |
01500-06307-000 |
from US $0.80 |
||
|
18
|
18
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
35793-37201-000 PLATE,RR COMBINATION LAMP |
35793-37201-000 |
US $2.17 |
||
|
20
|
20
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
21
|
21
09169-06025-000
Washer, inner
|
09169-06025-000 |
— | ||
| replacement | |||||
|
21
|
21
09169-06010-000 WASHERWasher, inner |
09169-06010-000 |
from US $1.98 |
||
|
22
|
22
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
22
|
22
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
09308-09004-000 GROMMETGrommet, lead wire |
09308-09004-000 |
from US $1.93 |
||
|
24
|
24
35995-45110-000
Emblem, rear
E15 |
35995-45110-000 |
— | ||
