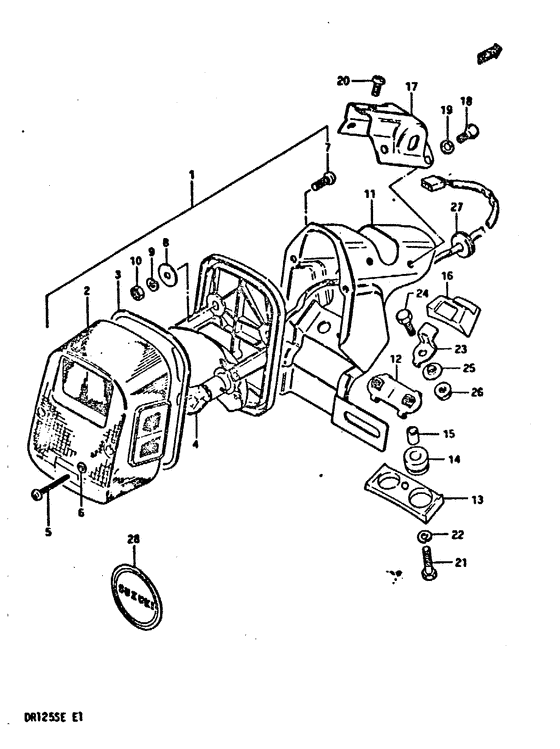

Rear combination lamp (E2, e18) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35720-38281-000
Lamp unit, rear combination
|
35720-38281-000 |
— | ||
| replacement | |||||
|
1
|
1
35720-38282-000
Lamp unit, rear combination
|
35720-38282-000 |
— | ||
|
2
|
2
35712-38221-000
Lens
|
35712-38221-000 |
— | ||
| replacement | |||||
|
2
|
2
35712-48750-000 LENS |
35712-48750-000 |
US $38.27 |
||
|
3
|
3
35713-38210-000
Gasket
|
35713-38210-000 |
— | ||
|
4
|
4
09471-12057-000
Bulb (12v, 21/5w)
Bulb (12v, 21/5w); |
09471-12057-000 |
— | ||
| replacements | |||||
|
4
|
4
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v, 21/5w); |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12083-000 BULB(12V21/5W)Bulb (12v, 21/5w); |
09471-12083-000 |
from US $4.75 |
||
|
5
|
5
03211-04308-000
Screw
|
03211-04308-000 |
— | ||
| replacement | |||||
|
5
|
5
03211-04306-000 SCREW |
03211-04306-000 |
from US $2.82 |
||
|
6
|
6
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
7
|
7
02112-05165-000
Screw
|
02112-05165-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-05164-000 SCREWScrew, rect & relay cover |
02112-05164-000 |
from US $3.59 |
||
|
8
|
8
35727-36510-000
Washer
|
35727-36510-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-05501-000 WASHER(5.5X20X1.2)Washer (5.5x20x1.2) |
09160-05501-000 |
from US $0.76 |
||
|
9
|
9
08321-21050-000
Lock washer
|
08321-21050-000 |
— | ||
|
10
|
10
06310-11058-000
Nut
|
06310-11058-000 |
— | ||
|
11
|
11
35730-38280-000
Bracket unit
|
35730-38280-000 |
— | ||
|
12
|
12
35716-38210-000
PLATE
|
35716-38210-000 |
— | ||
|
13
|
13
35765-38210-000
CUSHION
|
35765-38210-000 |
— | ||
|
14
|
14
35765-30950-000 CUSHION |
35765-30950-000 |
from US $14.09 |
||
|
15
|
15
35766-38210-000 SPACER |
35766-38210-000 |
US $1.14 |
||
|
16
|
16
35717-38210-000
Cushion
|
35717-38210-000 |
— | ||
|
17
|
17
35727-38200-000
Plate
|
35727-38200-000 |
— | ||
|
18
|
18
01107-06125-000
Bolt
|
01107-06125-000 |
— | ||
| replacement | |||||
|
18
|
18
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
19
|
19
08322-21065-000
Washer
|
08322-21065-000 |
— | ||
| replacement | |||||
|
19
|
19
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
20
|
20
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
20
|
20
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
21
|
21
01107-06306-000
Bolt
|
01107-06306-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0630A-000 Bolt |
01500-0630A-000 |
from US $0.80 |
||
|
22
|
22
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
23
|
23
35793-37201-000 PLATE,RR COMBINATION LAMP |
35793-37201-000 |
US $2.17 |
||
|
24
|
24
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
25
|
25
09169-06025-000
Washer, inner
|
09169-06025-000 |
— | ||
| replacement | |||||
|
25
|
25
09169-06010-000 WASHERWasher, inner |
09169-06010-000 |
from US $1.98 |
||
|
26
|
26
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
26
|
26
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
26
|
26
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
27
|
27
09308-09004-000 GROMMETGrommet, lead wire |
09308-09004-000 |
from US $1.93 |
||
|
28
|
28
35995-45110-000
Emblem, rear
E18 |
35995-45110-000 |
— | ||
