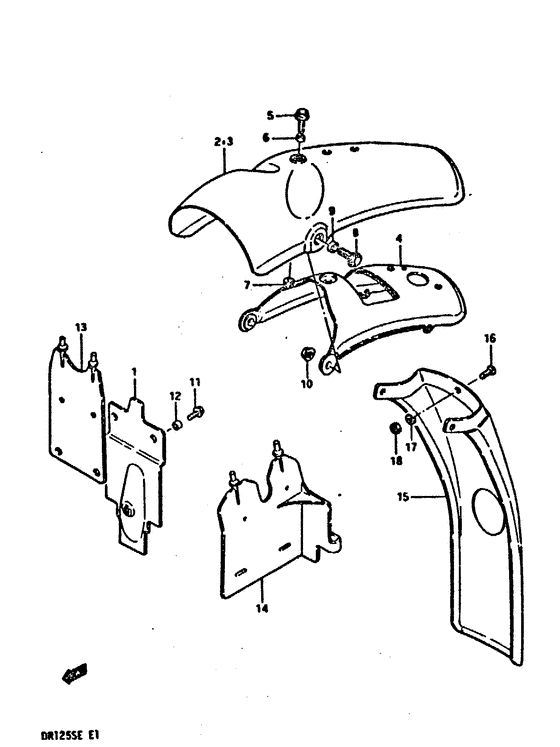

Rear fender Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63112-05200-000
Rear fender fro
|
63112-05200-000 |
— | ||
|
2
|
2
63111-05231-019
Fender, rear (black)
Fender, rear (black); |
63111-05231-019 |
— | ||
|
2
|
2
63111-05231-14C
Fender, rear (red)
Fender, rear (red); |
63111-05231-14C |
— | ||
|
2
|
2
63111-05231-163
Fender, rear (yellow)
Fender, rear (yellow); |
63111-05231-163 |
— | ||
|
2
|
2
63111-05231-05K
Fender, rear (blue)
Fender, rear (blue); |
63111-05231-05K |
— | ||
|
2
|
2
63111-05231-10V
Fender, rear (white)
Fender, rear (white); |
63111-05231-10V |
— | ||
|
3
|
3
63111-05240-019
Fender, rear (black)
Fender, rear (black); E15, e18 |
63111-05240-019 |
— | ||
|
3
|
3
63111-05240-14C
Fender, rear (red)
Fender, rear (red); E15, e18 |
63111-05240-14C |
— | ||
|
3
|
3
63111-05240-163
Fender, rear (yellow)
Fender, rear (yellow); E15, e18 |
63111-05240-163 |
— | ||
|
3
|
3
63111-05240-05K
Fender, rear (blue)
Fender, rear (blue); E15, e18 |
63111-05240-05K |
— | ||
|
3
|
3
63111-05240-10V
Fender, rear (white)
Fender, rear (white); E15, e18 |
63111-05240-10V |
— | ||
|
4
|
4
63120-38201-000 REINFORCEMENT |
63120-38201-000 |
US $55.20 |
||
|
5
|
5
01517-06208-000
Bolt
|
01517-06208-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-06207-000 BOLT |
01550-06207-000 |
from US $0.80 |
||
|
6
|
6
09180-06073-000
Spacer (6.4x9x5)
|
09180-06073-000 |
— | ||
| replacement | |||||
|
6
|
6
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $3.21 |
||
|
7
|
7
08319-31068-000
Nut
|
08319-31068-000 |
— | ||
| replacement | |||||
|
7
|
7
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.44 |
||
|
8
|
8
01517-08258-000
Bolt
|
01517-08258-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-08257-000 BOLT |
01550-08257-000 |
from US $0.95 |
||
|
9
|
9
09180-06100-000
Spacer
|
09180-06100-000 |
— | ||
|
10
|
10
08319-31088-000
Nut
|
08319-31088-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
11
|
11
02152-06128-000
Screw
|
02152-06128-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-16127-000 SCREWScrew, wiring harness |
02112-16127-000 |
US $14.40 |
||
|
12
|
12
09180-06073-000
Spacer (6.4x9x5)
|
09180-06073-000 |
— | ||
| replacement | |||||
|
12
|
12
09180-06306-000 SPACER(6.5X9X5) |
09180-06306-000 |
from US $3.21 |
||
|
13
|
13
63411-05200-000
Mud gd rr fende
|
63411-05200-000 |
— | ||
|
14
|
14
63416-05201-000
Guard mud
|
63416-05201-000 |
— | ||
|
15
|
15
63331-38210-000
Extension, rear fender
E15, e18 |
63331-38210-000 |
— | ||
|
16
|
16
02142-06167-000 SCREWScrew Screw; E15, e18 |
02142-06167-000 |
from US $0.76 |
||
|
17
|
17
08321-31068-000
Lock washer
E15, e18 |
08321-31068-000 |
— | ||
| replacement | |||||
|
17
|
17
08321-01067-000 WASHER,LOCKE15, e18 |
08321-01067-000 |
from US $0.76 |
||
|
18
|
18
08310-11068-000
Nut
E15, e18 |
08310-11068-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-00067-000 NUTE15, e18 |
08310-00067-000 |
from US $0.76 |
||
