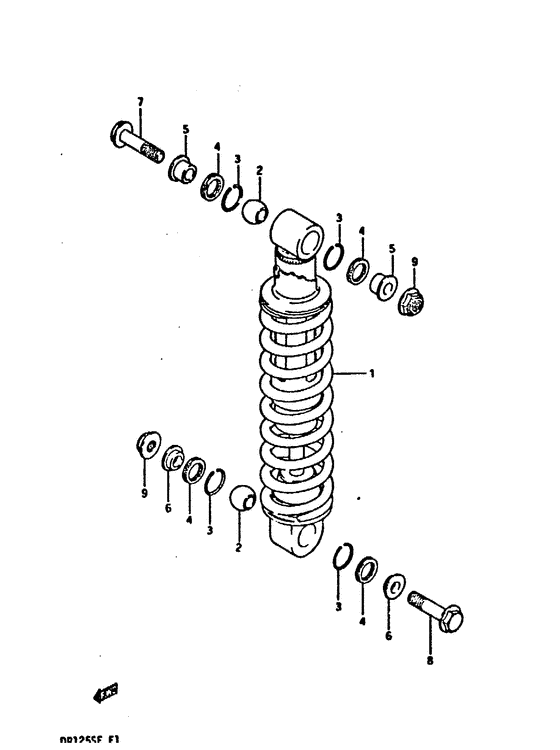

Shock absorber Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-05240-000
Shock absorber, rear
|
62100-05240-000 |
— | ||
| replacement | |||||
|
1
|
1
62100-48700-000 ABSORBER ASSY,RR SHOCKAbsorber assy, rear shock |
62100-48700-000 |
US $432.96 |
||
|
2
|
2
62175-05220-000
Bearing
|
62175-05220-000 |
— | ||
| replacements | |||||
|
2
|
2
62175-00B00-000 BEARING,RR CUSHION LEVERBearing, upper |
62175-00B00-000 |
from US $49.40 |
||
|
2
|
2
09269-10007-000
Ps 10x24x15 bea
|
09269-10007-000 |
— | ||
|
3
|
3
62277-20900-000
Ring,stopper
|
62277-20900-000 |
— | ||
| replacement | |||||
|
3
|
3
62657-34A01-000 RING,STOPPER |
62657-34A01-000 |
from US $1.60 |
||
|
4
|
4
62226-05220-000
Dust seal rr sh
|
62226-05220-000 |
— | ||
|
5
|
5
62684-05220-000
COLLAR,UPR
|
62684-05220-000 |
— | ||
|
6
|
6
62686-05220-000
COLLAR,LWR
|
62686-05220-000 |
— | ||
|
7
|
7
09103-10050-000 BOLT(10X60)Bolt, upper Bolt, upper; |
09103-10050-000 |
from US $4.41 |
||
|
8
|
8
09103-10045-000 BOLT(10X50)Bolt, lower Bolt, lower; |
09103-10045-000 |
from US $6.34 |
||
|
9
|
9
06319-31108-000
Nut
|
06319-31108-000 |
— | ||
