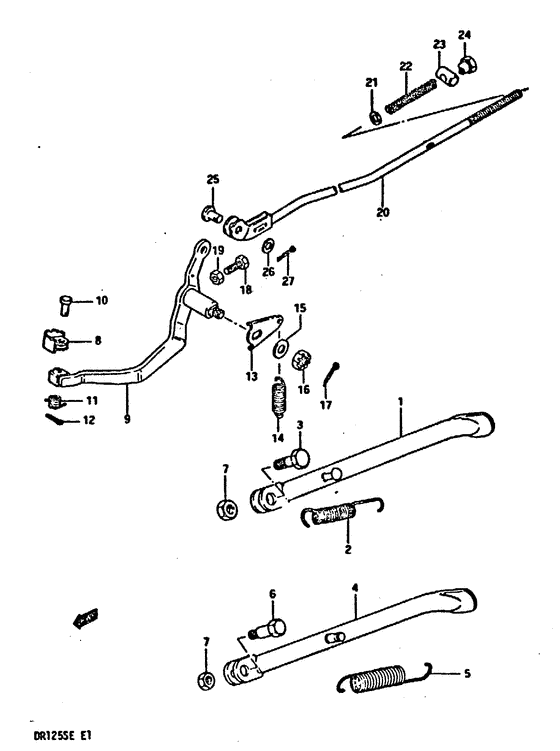

Stand - rear brake Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-05200-19F
Stand, prop (blue)
For 019, 163, 10v |
42310-05200-19F |
— | ||
| replacement | |||||
|
1
|
1
42310-05280-019
STAND,PROP(BLACK)
For 019, 163, 10v |
42310-05280-019 |
— | ||
|
1
|
1
42310-05200-019
Stand, prop (black)
For 14c, 05k |
42310-05200-019 |
— | ||
| replacement | |||||
|
1
|
1
42310-05280-019
STAND,PROP(BLACK)
For 14c, 05k |
42310-05280-019 |
— | ||
|
2
|
2
09443-17007-000 SPRING |
09443-17007-000 |
from US $2.74 |
||
|
3
|
3
09100-10067-000 BOLT(10X30)Bolt (10*30) Bolt (10*30); |
09100-10067-000 |
from US $1.52 |
||
|
4
|
4
42310-05210-19F
Stand, prop (blue)
Stand, prop (blue); E18 for 019, 163, 10v |
42310-05210-19F |
— | ||
|
4
|
4
42310-05210-019
Stand, prop (black)
Stand, prop (black); E18 for 14c, 05k |
42310-05210-019 |
— | ||
|
5
|
5
09443-15007-000
Spring
E18 |
09443-15007-000 |
— | ||
| replacement | |||||
|
5
|
5
09443-15007-XC0
SPRING
E18 |
09443-15007-XC0 |
— | ||
|
6
|
6
09111-10019-000
Bolt
E18 |
09111-10019-000 |
— | ||
| replacement | |||||
|
6
|
6
09111-10047-000 BOLT(10X30)E18 |
09111-10047-000 |
from US $1.76 |
||
|
7
|
7
08310-22108-000
Nut
|
08310-22108-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
8
|
8
43110-14130-000 PEDAL,BRAKEPedal, brake; |
43110-14130-000 |
from US $7.95 |
||
|
9
|
9
43120-05211-000
Arm brake pedal
|
43120-05211-000 |
— | ||
|
10
|
10
09200-06038-000 PIN |
09200-06038-000 |
from US $3.25 |
||
|
11
|
11
09444-11004-000
Spring
|
09444-11004-000 |
— | ||
| replacement | |||||
|
11
|
11
09444-11005-000 SPRING |
09444-11005-000 |
from US $4.34 |
||
|
12
|
12
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
12
|
12
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
13
|
13
43128-38200-000 ARM,BRAKE RETURN SPRINGArm, brake return spring Arm, brake pedal return; |
43128-38200-000 |
from US $1.62 |
||
|
14
|
14
09443-14002-000 SPRINGSpring |
09443-14002-000 |
from US $3.25 |
||
|
15
|
15
08211-08202-000 WASHERWasher; |
08211-08202-000 |
from US $3.47 |
||
|
16
|
16
08314-41008-000
Nut
|
08314-41008-000 |
— | ||
|
17
|
17
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
17
|
17
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
18
|
18
09100-06009-000 BOLT(6X23)Bolt Bolt (6*27); |
09100-06009-000 |
from US $1.22 |
||
|
19
|
19
08310-11068-000
Nut
|
08310-11068-000 |
— | ||
| replacement | |||||
|
19
|
19
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
20
|
20
43300-05200-000
Rod assy, rear brake
|
43300-05200-000 |
— | ||
| replacement | |||||
|
20
|
20
43300-05X50-000
ROD ASSY,RR BRAKE
|
43300-05X50-000 |
— | ||
|
21
|
21
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
22
|
22
09440-09004-000 SPRINGSpring Spring; |
09440-09004-000 |
from US $1.22 |
||
|
23
|
23
09209-13005-000
Pin
|
09209-13005-000 |
— | ||
| replacement | |||||
|
23
|
23
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
24
|
24
09150-06009-000
Nut
|
09150-06009-000 |
— | ||
| replacement | |||||
|
24
|
24
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
25
|
25
09200-06039-000 PINPin |
09200-06039-000 |
from US $2.17 |
||
|
26
|
26
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
26
|
26
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
27
|
27
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
27
|
27
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
