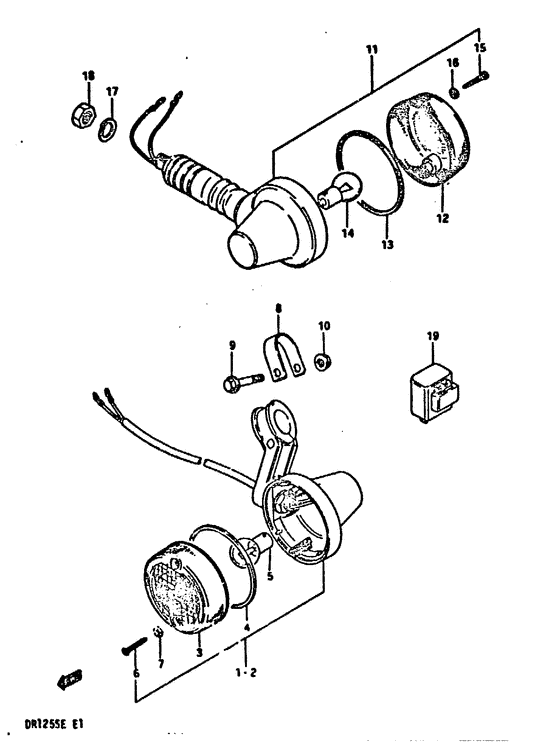

Turn signal lamp (E2) Diagram Suzuki DR125
- Year
- 1984
- Model code
- DR125SE E
- Engine Capacity
- 125
- Model
- DR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-38220-000
Lamp, front turn signal rh
|
35601-38220-000 |
— | ||
|
2
|
2
35602-38220-000
Lamp, front turn signal lh
|
35602-38220-000 |
— | ||
|
3
|
3
35612-48530-000
Lens
|
35612-48530-000 |
— | ||
| replacement | |||||
|
3
|
3
35612-01A70-000 LENS,FR TURNSIGNAL LAMP |
35612-01A70-000 |
from US $10.71 |
||
|
4
|
4
35613-38620-000
Gasket
|
35613-38620-000 |
— | ||
|
5
|
5
09471-12045-000 BULB(12V21W)Bulb (12v, 21w); Executed locally |
09471-12045-000 |
from US $2.54 |
||
|
6
|
6
03211-04258-000
Screw
|
03211-04258-000 |
— | ||
| replacement | |||||
|
6
|
6
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
7
|
7
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
8
|
8
35616-05210-000
PLATE
|
35616-05210-000 |
— | ||
|
9
|
9
09103-05003-000
Bolt,fr turn si
|
09103-05003-000 |
— | ||
|
10
|
10
08316-16058-000
Nut
|
08316-16058-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
11
|
11
35603-38280-000
Lamp, rear turn signal
|
35603-38280-000 |
— | ||
|
12
|
12
35612-48510-000
Lens
|
35612-48510-000 |
— | ||
| replacement | |||||
|
12
|
12
35652-01A70-000
LENS,RR TURNSIGNAL LAMP
|
35652-01A70-000 |
— | ||
|
13
|
13
35613-28620-000 GASKETGasket Gasket; |
35613-28620-000 |
from US $2.24 |
||
|
14
|
14
09471-12045-000 BULB(12V21W)Bulb (12v, 21w); Executed locally |
09471-12045-000 |
from US $2.54 |
||
|
15
|
15
03211-04258-000
Screw
|
03211-04258-000 |
— | ||
| replacement | |||||
|
15
|
15
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
16
|
16
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
17
|
17
08321-21128-000 12mm lock washeLock washer |
08321-21128-000 |
US $1.87 |
||
| replacement | |||||
|
17
|
17
08321-01127-000 WASHER,LOCK |
08321-01127-000 |
from US $0.80 |
||
|
18
|
18
08310-12128-000
Nut
|
08310-12128-000 |
— | ||
| replacements | |||||
|
18
|
18
09140-12039-000 NUT |
09140-12039-000 |
from US $1.76 |
||
|
18
|
18
08310-00127-000 NUT |
08310-00127-000 |
from US $0.80 |
||
|
19
|
19
38610-31310-000 Relay, turn signal |
38610-31310-000 |
US $68.55 |
||
| replacement | |||||
|
19
|
19
38610-31X50-000 RELAY ASSY,TURNSIGNALRelay assy, turn signal |
38610-31X50-000 |
from US $26.40 |
||
