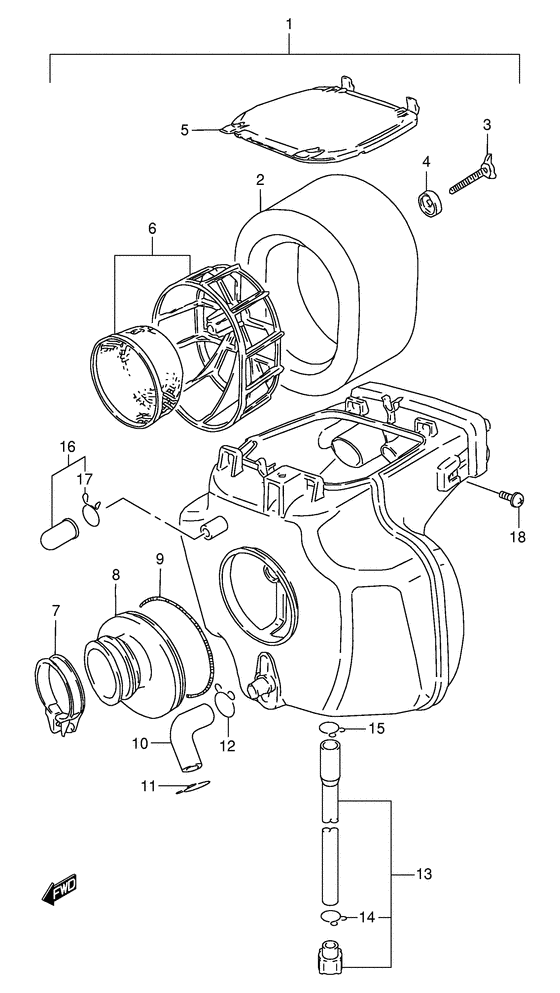

Air cleaner Diagram Suzuki DR125
- Year
- 2001
- Model code
- DR125SEUK1(E2) K1
- Engine Capacity
- 125
- Model
- DR125SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-44A21-000 CLEANER ASSY,AIRCleaner assy, air |
13700-44A21-000 |
from US $131.38 |
||
|
1
|
1
13700-44A31-000
CLEANER ASSY,AIR
E18,e22 |
13700-44A31-000 |
— | ||
|
2
|
2
13780-42A01-000 FILTERFilter |
13780-42A01-000 |
from US $25.08 |
||
|
3
|
3
13831-42A00-000 BOLT,WING |
13831-42A00-000 |
from US $2.98 |
||
|
4
|
4
13796-16700-000 WASHER,FILTER HOLDER |
13796-16700-000 |
from US $1.62 |
||
|
5
|
5
13740-42A00-000 CAP |
13740-42A00-000 |
from US $14.90 |
||
|
6
|
6
13790-42A00-000 HOLDERHolder |
13790-42A00-000 |
from US $28.80 |
||
|
7
|
7
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
7
|
7
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
8
|
8
13881-44A20-000
TUBE,AIR CLEANER OUTLET
|
13881-44A20-000 |
— | ||
| replacement | |||||
|
8
|
8
13881-44A21-000
Tube,air Cleaner Outlet
|
13881-44A21-000 |
— | ||
|
9
|
9
13826-38300-000 CLAMP,AIR CLEANER SIDEClamp, air cleaner side; |
13826-38300-000 |
from US $2.56 |
||
|
10
|
10
13853-42A00-000 TUBE,BREATHER |
13853-42A00-000 |
from US $5.44 |
||
|
10
|
10
13850-44A30-000
TUBE,BREATHER
E18,e22 |
13850-44A30-000 |
— | ||
|
11
|
11
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
12
|
12
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
13
|
13
13870-11458-000
TUBE,DRAIN
Tube, drain; |
13870-11458-000 |
— | ||
| replacement | |||||
|
13
|
13
13870-11459-000 Tube,drainTube, drain; |
13870-11459-000 |
from US $11.84 |
||
|
14
|
14
09401-13409-000 CLIPClamp Clip; |
09401-13409-000 |
from US $2.25 |
||
|
15
|
15
09401-13409-000 CLIPClamp Clip; |
09401-13409-000 |
from US $2.25 |
||
|
16
|
16
13870-14F00-000 PLUG,DRAINPlug, drain; |
13870-14F00-000 |
US $4.86 |
||
|
17
|
17
09401-16401-000 CLIP |
09401-16401-000 |
from US $1.92 |
||
|
18
|
18
02112-36163-000
Screw
|
02112-36163-000 |
— | ||
| replacements | |||||
|
18
|
18
02112-3616B-000 SCREW |
02112-3616B-000 |
from US $0.80 |
||
|
18
|
18
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
