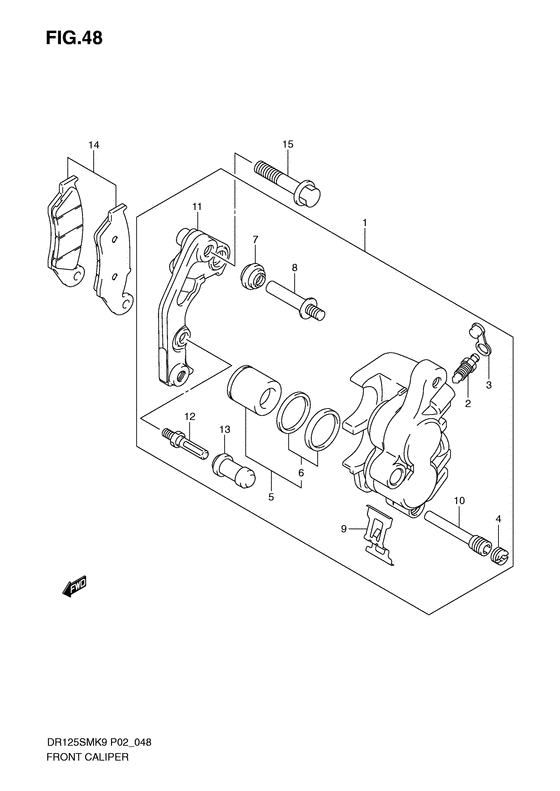

Front caliper Diagram Suzuki DR125
- Year
- 2009
- Model code
- DR125SMK9 K9
- Engine Capacity
- 125
- Model
- DR125SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59300-13E40-999
CALIPER ASSY,FR
|
59300-13E40-999 |
— | ||
|
2
|
2
59121-01A00-000 BLEEDER |
59121-01A00-000 |
from US $8.10 |
||
|
3
|
3
59122-01A00-000 CAP,BLEEDERCap, bleeder; |
59122-01A00-000 |
from US $1.76 |
||
|
4
|
4
59146-21E10-000 PLUG,PINPlug, pin Plug, pin; |
59146-21E10-000 |
from US $3.65 |
||
|
5
|
5
59300-27840-000 Piston set |
59300-27840-000 |
from US $65.26 |
||
|
6
|
6
59300-13820-000 SEAL SET,PISTON |
59300-13820-000 |
from US $19.76 |
||
|
7
|
7
59303-14500-000 BOOTBoot; |
59303-14500-000 |
from US $2.89 |
||
|
8
|
8
59305-27C00-000 PINPin; |
59305-27C00-000 |
from US $8.21 |
||
|
9
|
9
59315-13E00-000 SPRING,PADSpring, pad; |
59315-13E00-000 |
from US $5.32 |
||
|
10
|
10
59345-13E00-000 PIN,HANGERPin, hanger; |
59345-13E00-000 |
from US $8.10 |
||
|
11
|
11
59350-13E00-000 BRACKET |
59350-13E00-000 |
from US $68.45 |
||
|
12
|
12
59382-27C30-000 BoltBolt |
59382-27C30-000 |
from US $2.89 |
||
|
13
|
13
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $1.55 |
||
|
14
|
14
59300-13860-000 Pad set |
59300-13860-000 |
from US $52.67 |
||
|
15
|
15
09103-08338-000 BOLT(8X40)Bolt (8x40) Bolt, caliper; |
09103-08338-000 |
from US $4.74 |
