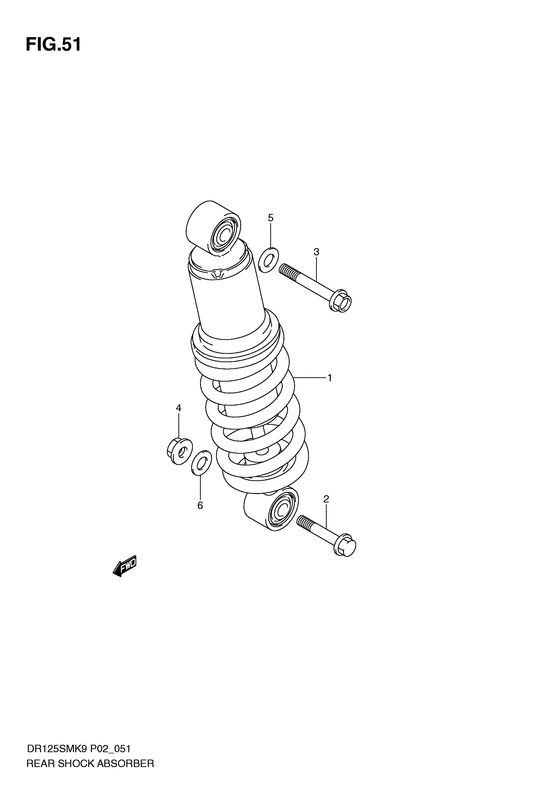

Rear shock absorber Diagram Suzuki DR125
- Year
- 2010
- Model code
- DR125SML0 L0
- Engine Capacity
- 125
- Model
- DR125SM
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-24H00-000
Absorber assy,rear shock
|
62100-24H00-000 |
— | ||
| replacement | |||||
|
1
|
1
62100-24H01-000 ABSORBER ASSY,RR SHOCK |
62100-24H01-000 |
US $753.28 |
||
|
2
|
2
62311-24H00-000 BOLT,RR SHOCK ABSORBER |
62311-24H00-000 |
US $2.65 |
||
|
3
|
3
09103-10027-000 BOLT(10X58)Bolt, rr shock absorber; |
09103-10027-000 |
from US $3.62 |
||
|
4
|
4
09159-10115-000 NUTNut, rr shock absorber; |
09159-10115-000 |
from US $2.72 |
||
|
5
|
5
09164-10011-000 WASHERWasher, rr shock absorber upper; |
09164-10011-000 |
from US $3.24 |
||
|
6
|
6
09164-10011-000 WASHERWasher, rr shock absorber lower; |
09164-10011-000 |
from US $3.24 |
||
