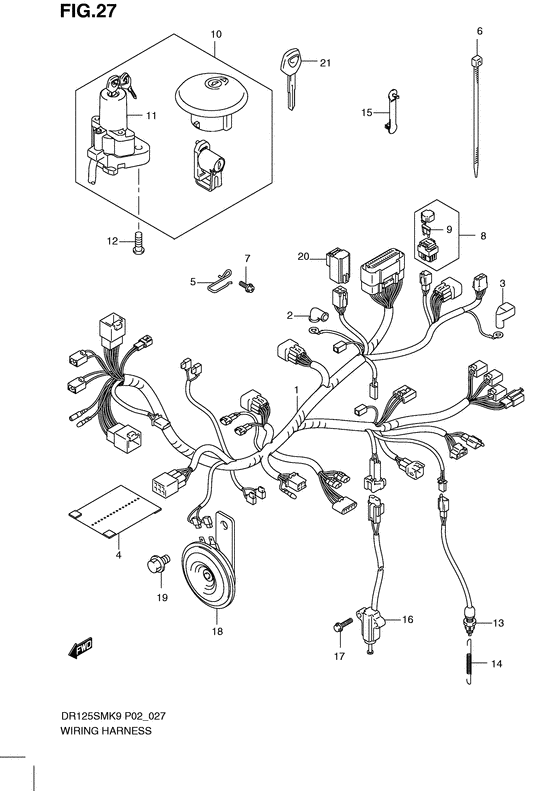

Wiring harness Diagram Suzuki DR125
- Year
- 2010
- Model code
- DR125SML0 L0
- Engine Capacity
- 125
- Model
- DR125SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610C24H00J000
Harness, wiring
|
36610C24H00J000 |
— | ||
|
2
|
2
31861C48B10J000 CapCap, starter relay; |
31861C48B10J000 |
US $5.37 |
||
| replacement | |||||
|
2
|
2
31861-48B10-000 CAP,STARTER MOTOR LEADCap, starter motor Cap, starter relay; |
31861-48B10-000 |
from US $3.24 |
||
|
3
|
3
33624C13H00J000
Cap, battery plus
|
33624C13H00J000 |
— | ||
|
4
|
4
36618-15D20-000
COVER,WIRING HARNESS
Cover, wiring harness; |
36618-15D20-000 |
— | ||
| replacement | |||||
|
4
|
4
36618-15D21-000 Cover,wiring HarnessCover, wiring harness; |
36618-15D21-000 |
from US $9.12 |
||
|
5
|
5
36619-24H00-000
Guide, wiring hanress
|
36619-24H00-000 |
— | ||
|
6
|
6
D9425-00975-000
Clamp
Clamp (l: 98); |
D9425-00975-000 |
— | ||
|
6
|
6
D9436-01425-000
Clamp
Clamp (l:142); |
D9436-01425-000 |
— | ||
|
6
|
6
D9448-01885-000
Clamp
Clamp (l:188); |
D9448-01885-000 |
— | ||
| replacement | |||||
|
6
|
6
D9448-02875-000
Clamp
Clamp (l:188); |
D9448-02875-000 |
— | ||
|
6
|
6
D9448-02875-000
Clamp
Clamp (l:287); |
D9448-02875-000 |
— | ||
|
7
|
7
D1557-0612A-000
Bolt
Bolt, wiring harness; |
D1557-0612A-000 |
— | ||
|
8
|
8
36740-09301-000
Box assy, main fuse
Fuse assy; |
36740-09301-000 |
— | ||
| replacement | |||||
|
8
|
8
36740-24B01-000 BOX ASSY,FUSEBox assy, main fuse Fuse assy; |
36740-24B01-000 |
from US $13.76 |
||
|
9
|
9
09481-20101-000 FUSE(20A)Fuse (20a); |
09481-20101-000 |
from US $1.93 |
||
|
10
|
10
37000-24840-000
LOCK SET
|
37000-24840-000 |
— | ||
| replacement | |||||
|
10
|
10
37000-24841-000 Lock Set |
37000-24841-000 |
US $349.60 |
||
|
11
|
11
37100-24H00-000 LOCK ASSY,STEERING |
37100-24H00-000 |
US $178.11 |
||
|
12
|
12
09119-08100-000
BOLT(8X20)
Screw (8x20); |
09119-08100-000 |
— | ||
| replacement | |||||
|
12
|
12
37152-17K00-000 BOLT,STEERING LOCKScrew (8x20); |
37152-17K00-000 |
US $2.50 |
||
|
13
|
13
37740-45D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp; |
37740-45D00-000 |
from US $11.52 |
||
| replacement | |||||
|
13
|
13
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; |
37740-31D00-000 |
from US $20.80 |
||
|
14
|
14
43232-24H00-000
SPRING,STOP LAMP SWITCH
|
43232-24H00-000 |
— | ||
|
15
|
15
09407-03401-000 CLAMP(L:33)Clamp (l:33); |
09407-03401-000 |
from US $0.91 |
||
|
16
|
16
37840-44A20-000
Switch assy, side stand
Switch assy, side stand; |
37840-44A20-000 |
— | ||
| replacements | |||||
|
16
|
16
37840-44X50-000
SWITCH ASSY,SIDE STAND
Switch assy, side stand; |
37840-44X50-000 |
— | ||
|
16
|
16
37840-44X51-000 Switch Assy,side StandSwitch assy, side stand; |
37840-44X51-000 |
US $59.62 |
||
|
17
|
17
D1557-0620B-000 BoltBolt, side stand; |
D1557-0620B-000 |
US $2.28 |
||
| replacement | |||||
|
17
|
17
01550-0620B-000 BOLTBolt, inspection cap Bolt, side stand; |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
38500-12F10-000
Horn assy
|
38500-12F10-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-10D10-000 HORN ASSY |
38500-10D10-000 |
from US $52.26 |
||
|
19
|
19
D1557-0812B-000
Bolt
Bolt, horn; |
D1557-0812B-000 |
— | ||
|
20
|
20
38740-26E00-000
RELAY ASSY
Relay assy, side stand; |
38740-26E00-000 |
— | ||
| replacement | |||||
|
20
|
20
38740-26E01-000 Relay Assy,fuel PumpRelay assy, side stand; |
38740-26E01-000 |
US $21.53 |
||
|
21
|
21
37146-33E00-000 KEY,BLANKOpt |
37146-33E00-000 |
from US $25.94 |
||
