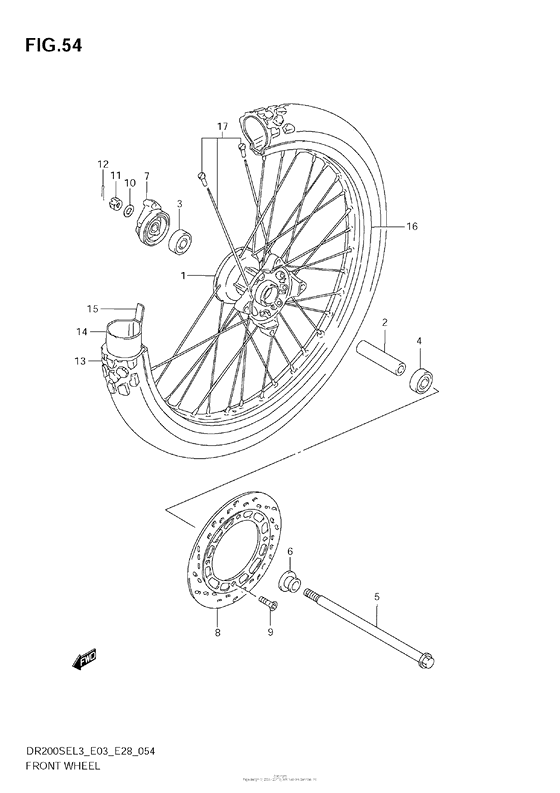

Front Wheel Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-44A10-000 HUB,FR WHEELNub, front wheel |
54111-44A10-000 |
from US $171.86 |
||
|
2
|
2
09180-12146-000 SPACER(12.5X19X60.5)Spacer, hub bearing (12.5x19x60.50) |
09180-12146-000 |
from US $18.36 |
||
|
3
|
3
08113-62017-000
BEARING
|
08113-62017-000 |
— | ||
| replacement | |||||
|
3
|
3
08113-6201B-000 Bearing |
08113-6201B-000 |
from US $9.64 |
||
|
4
|
4
08133-62017-000 BEARINGBearing (12x32x10) |
08133-62017-000 |
from US $10.72 |
||
|
5
|
5
54711-44A01-000 AXLE,FR |
54711-44A01-000 |
from US $19.87 |
||
|
6
|
6
54740-02B40-000 SPACER,FR AXLESpacer, axle lh |
54740-02B40-000 |
from US $8.98 |
||
|
7
|
7
54600-01A00-000
BOX ASSY,SPEEDOMETER GEAR
|
54600-01A00-000 |
— | ||
| replacement | |||||
|
7
|
7
54600-01A01-000 Box Assy,speedometer Gear |
54600-01A01-000 |
from US $51.52 |
||
|
8
|
8
59221-13A01-000 DISC,FR BRAKEDisc, front brake |
59221-13A01-000 |
from US $246.40 |
||
|
9
|
9
09106-08155-000 BOLT(8X20)Bolt, brake disc |
09106-08155-000 |
from US $1.33 |
||
|
10
|
10
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
|
11
|
11
09141-12004-000 NUT |
09141-12004-000 |
from US $6.49 |
||
|
12
|
12
04111-3025A-000 PINPin, cotter |
04111-3025A-000 |
from US $2.18 |
||
|
13
|
13
55110-42AA0-000 TIRE,FR(70/100-21 44P)Tire, front (70/100-21 44p) (bridgestone) |
55110-42AA0-000 |
from US $111.50 |
||
|
14
|
14
55200-42AA1-000 TUBE ASSY,WHEEL INNER |
55200-42AA1-000 |
US $30.18 |
||
|
15
|
15
55261-32E01-000 PROTECTOR,WHL INR TUBE |
55261-32E01-000 |
US $9.03 |
||
|
16
|
16
55311-42AA0-000 RIM,FR WHEEL(21X1.60)Rim, front wheel (21x1.60) |
55311-42AA0-000 |
from US $248.40 |
||
|
17
|
17
55320-42A00-000 SPOKE SET,FR WHEELSpoke set, front wheel |
55320-42A00-000 |
from US $30.73 |
||
