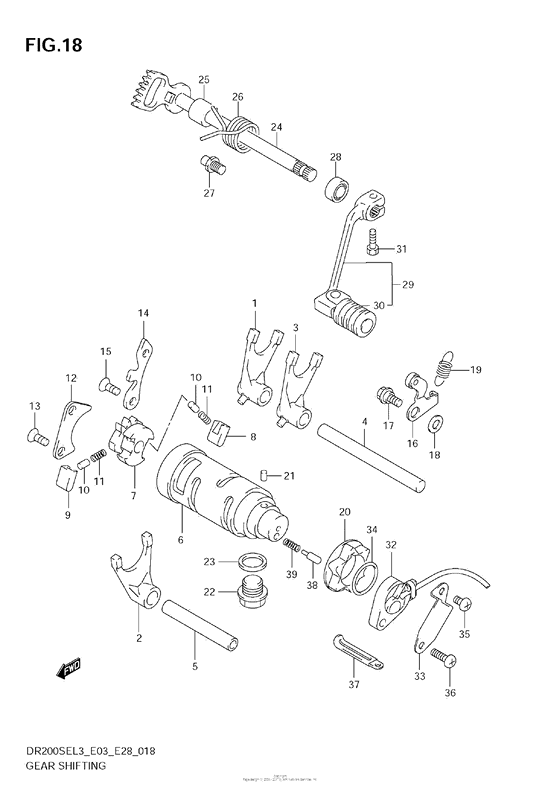

Gear Shifting Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-42A02-000 FORK,GEAR SHIFT NO.1Fork, gear shift no.1 |
25211-42A02-000 |
from US $43.79 |
||
|
2
|
2
25221-42A02-000 FORK,GEAR SHIFT NO.2Fork, gear shift no.2 |
25221-42A02-000 |
US $43.79 |
||
|
3
|
3
25231-42A02-000 FORK,GEAR SHIFT NO.3Fork, gear shift no.3 |
25231-42A02-000 |
US $43.79 |
||
|
4
|
4
25411-16701-000 SHAFT,GEAR SHIFT FORK(L:109)Shaft, fork |
25411-16701-000 |
from US $8.46 |
||
|
5
|
5
25421-35420-000 SHAFT,GEAR SHIFT FORK NO.2 |
25421-35420-000 |
from US $7.58 |
||
|
6
|
6
25310-42A00-000 CAM,GEAR SHIFTCam, gear shift |
25310-42A00-000 |
US $64.40 |
||
|
7
|
7
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVEN |
25322-31310-000 |
from US $15.96 |
||
|
8
|
8
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 |
25323-34201-000 |
from US $6.23 |
||
|
9
|
9
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 |
25324-34201-000 |
from US $6.23 |
||
|
10
|
10
09261-05003-000 PIN(5X8)Pin |
09261-05003-000 |
from US $1.22 |
||
|
11
|
11
09440-04003-000 SPRING |
09440-04003-000 |
from US $1.06 |
||
|
12
|
12
25331-30001-000 LIFTER,GEAR SHIFT POLELifter, gear shift pole |
25331-30001-000 |
US $4.32 |
||
|
13
|
13
09126-06011-000 SCREW(6X12)Screw, retainer mdl |
09126-06011-000 |
from US $0.76 |
||
|
14
|
14
25341-05200-000 GUIDE,GEAR SHIFT CAMGuide, gear shift cam |
25341-05200-000 |
US $5.81 |
||
|
15
|
15
09126-06011-000 SCREW(6X12)Screw, retainer mdl |
09126-06011-000 |
from US $0.76 |
||
|
16
|
16
25350-42A01-000 STOPPER,GEAR SHIFT CAM |
25350-42A01-000 |
from US $7.95 |
||
|
17
|
17
09111-06054-000 BOLT(6X14.6) |
09111-06054-000 |
from US $5.03 |
||
|
18
|
18
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
19
|
19
09443-10036-000 SPRING |
09443-10036-000 |
from US $6.26 |
||
|
20
|
20
25381-04700-000 PLATE,GEAR SHIFT CAM STOPPER |
25381-04700-000 |
from US $10.82 |
||
|
21
|
21
04221-04069-000 PINPin, oil pump drive gear |
04221-04069-000 |
from US $0.76 |
||
|
22
|
22
09247-14026-000 PLUG(14X12)Plug, drain |
09247-14026-000 |
from US $2.72 |
||
|
23
|
23
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
24
|
24
25510-05201-000 SHAFT,GEAR SHIFTShaft, gear shifting |
25510-05201-000 |
from US $44.53 |
||
|
25
|
25
09180-12068-000 SPACER(12X20X15.3)Spacer (12x20x15.3) |
09180-12068-000 |
from US $5.07 |
||
|
26
|
26
09444-26023-000 SPRING |
09444-26023-000 |
from US $1.82 |
||
|
27
|
27
25671-01011-000 STOPPER,GEAR SHIFT ARM |
25671-01011-000 |
from US $1.92 |
||
|
28
|
28
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) |
09285-12006-000 |
from US $2.58 |
||
|
29
|
29
25600-42A00-000 LEVER ASSY,GEAR SHIFTLever assy, gear shift |
25600-42A00-000 |
from US $36.40 |
||
|
30
|
30
25652-03D00-000 RUBBER,GEAR SHIFT PEDALRubber, gear shift pedal |
25652-03D00-000 |
from US $3.34 |
||
|
31
|
31
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
32
|
32
37720-42A30-000 BASE ASSY,NEUTRAL SW TERMINALBase assy, neutral switch |
37720-42A30-000 |
from US $19.69 |
||
|
33
|
33
37721-42A00-000 PROTECTOR,GEAR SHIFT SWProtector, neut switch |
37721-42A00-000 |
from US $1.62 |
||
|
34
|
34
09280-22001-000 O RING(D:2.4,ID:21.8)O-ring (d:2.4,id:21.8) |
09280-22001-000 |
from US $1.67 |
||
|
35
|
35
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
36
|
36
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
37
|
37
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
38
|
38
09209-05011-000 PIN(5X15.5)Contact |
09209-05011-000 |
from US $1.51 |
||
|
39
|
39
09440-04010-000 SPRING |
09440-04010-000 |
from US $1.06 |
