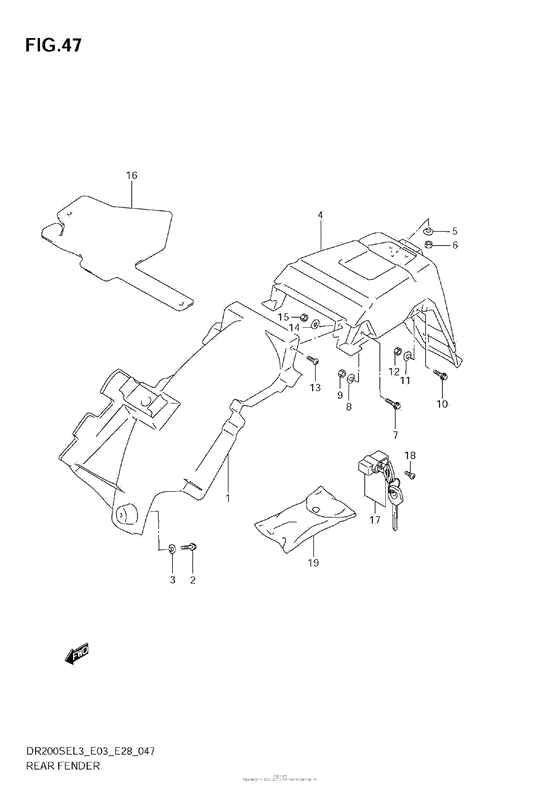

Rear Fender Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-44AB0-000 BODY,RR FENDER FR |
63110-44AB0-000 |
from US $58.14 |
||
|
2
|
2
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
09169-06010-000 WASHERWasher, inner |
09169-06010-000 |
from US $1.98 |
||
|
4
|
4
63100-44AG0-019 BODY ASSY,RR FENDER RR |
63100-44AG0-019 |
US $185.26 |
||
|
4
|
4
63100-44AG0-30H BODY ASSY,RR FENDER RR |
63100-44AG0-30H |
US $254.08 |
||
|
5
|
5
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
6
|
6
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
7
|
7
09106-08151-000 BOLT(8X25) |
09106-08151-000 |
from US $1.68 |
||
|
8
|
8
09169-08037-000 WASHERWasher, inner |
09169-08037-000 |
from US $3.33 |
||
|
9
|
9
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
10
|
10
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
11
|
11
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
12
|
12
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
13
|
13
02142-0616B-000 SCREWScrew, hinge |
02142-0616B-000 |
from US $2.82 |
||
|
14
|
14
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
15
|
15
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
16
|
16
63411-44AA0-000 MUDFLAP,RR FENDER FRMud flap, rear fender front |
63411-44AA0-000 |
from US $29.07 |
||
|
17
|
17
95700-41821-000 LOCK SET,HELMET |
95700-41821-000 |
from US $76.91 |
||
|
18
|
18
09139-06089-000 SCREW(6X14) |
09139-06089-000 |
from US $0.96 |
||
|
19
|
19
09800-21022-000 TOOL ASSY |
09800-21022-000 |
US $40.29 |
||
| replacement | |||||
|
19
|
19
09800-21104-000 Tool Assy |
09800-21104-000 |
from US $39.13 |
||
