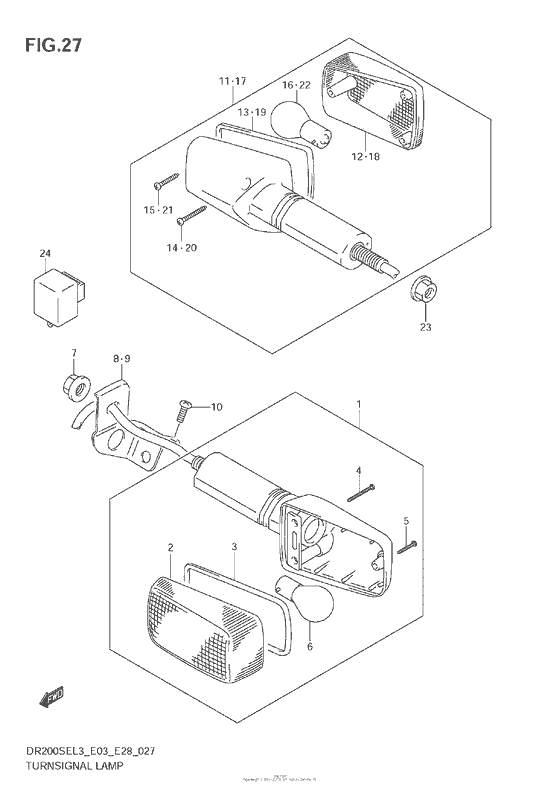

Turnsignal Lamp Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-29EC0-000 LAMP ASSY,FR TURN SIGNALLamp assy, front turn signal |
35601-29EC0-000 |
from US $98.80 |
||
|
2
|
2
35612-17C20-000 LENSLens, front turn signal |
35612-17C20-000 |
from US $7.68 |
||
|
3
|
3
35613-27A00-000 GASKET |
35613-27A00-000 |
from US $2.58 |
||
|
4
|
4
35623-27A00-000 SCREW(3X30) |
35623-27A00-000 |
from US $0.85 |
||
|
5
|
5
35725-40511-000 SCREW |
35725-40511-000 |
from US $0.92 |
||
|
6
|
6
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
7
|
7
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
8
|
8
35670-44A01-000 BRACKET,FR TURN,RBracket, front turn rh |
35670-44A01-000 |
from US $7.03 |
||
|
9
|
9
35680-44A01-000 BRACKET,FR TURN,LBracket, front turn lh |
35680-44A01-000 |
from US $7.03 |
||
|
10
|
10
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
11
|
11
35603-29EK0-000 LAMP ASSY,RR TURNSIGNALLamp assy, rear turnsignal |
35603-29EK0-000 |
from US $71.76 |
||
|
12
|
12
35652-17C20-000 LENSLens, rear turn signal |
35652-17C20-000 |
from US $9.50 |
||
|
13
|
13
35613-27A00-000 GASKET |
35613-27A00-000 |
from US $2.58 |
||
|
14
|
14
35623-27A00-000 SCREW(3X30) |
35623-27A00-000 |
from US $0.85 |
||
|
15
|
15
35725-40511-000 SCREW |
35725-40511-000 |
from US $0.92 |
||
|
16
|
16
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
17
|
17
35603-29EK0-000 LAMP ASSY,RR TURNSIGNALLamp assy, rear turnsignal |
35603-29EK0-000 |
from US $71.76 |
||
|
18
|
18
35652-17C20-000 LENSLens, rear turn signal |
35652-17C20-000 |
from US $9.50 |
||
|
19
|
19
35613-27A00-000 GASKET |
35613-27A00-000 |
from US $2.58 |
||
|
20
|
20
35623-27A00-000 SCREW(3X30) |
35623-27A00-000 |
from US $0.85 |
||
|
21
|
21
35725-40511-000 SCREW |
35725-40511-000 |
from US $0.92 |
||
|
22
|
22
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
23
|
23
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
24
|
24
38610-31X50-000 RELAY ASSY,TURNSIGNALRelay assy, turn signal |
38610-31X50-000 |
from US $26.40 |
