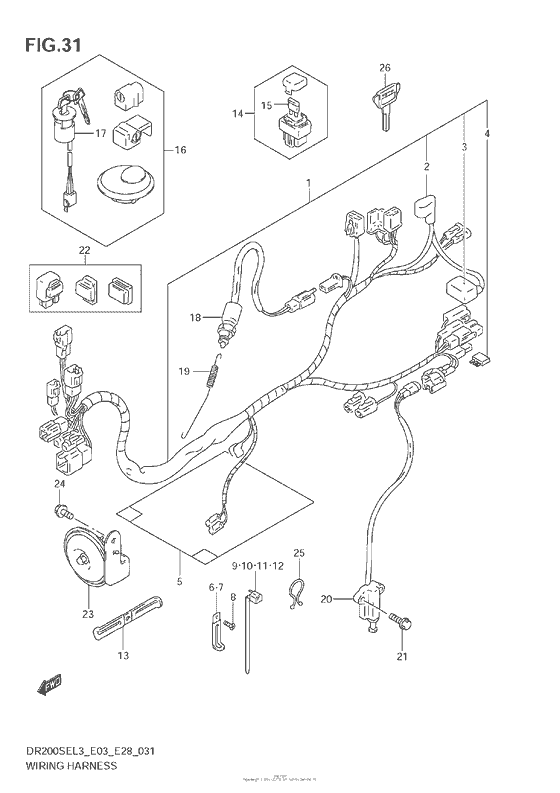

Wiring Harness (Dr200Sel3 E33) Diagram Suzuki DR200 DR200SE
- Year
- 2013
- Model code
- DR200SE
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-42A50-000 HARNESS,WIRINGHarness, wiring |
36610-42A50-000 |
from US $307.28 |
||
|
2
|
2
31861-10D00-000 CAP,STARTER RELAYCap, starter relay |
31861-10D00-000 |
from US $4.20 |
||
|
3
|
3
33624-10D00-000 CAP,BATTERY PLUSCap, battery plus term |
33624-10D00-000 |
from US $2.40 |
||
|
4
|
4
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
5
|
5
36618-15D20-000
COVER,WIRING HARNESS
|
36618-15D20-000 |
— | ||
| replacement | |||||
|
5
|
5
36618-15D21-000 Cover,wiring Harness |
36618-15D21-000 |
from US $9.12 |
||
|
6
|
6
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
8
|
8
03541-0410B-000 SCREWScrew, rear |
03541-0410B-000 |
from US $1.70 |
||
|
9
|
9
09407-11401-000 CLAMP(L:95)Clamp, stator lead |
09407-11401-000 |
from US $1.76 |
||
|
10
|
10
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
11
|
11
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
12
|
12
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
13
|
13
36651-05301-000 CLAMP,STARTER MOTOR LEADClamp, starter motor reed |
36651-05301-000 |
US $2.39 |
||
|
14
|
14
36740-24B01-000 BOX ASSY,FUSEBox assy, main fuse |
36740-24B01-000 |
from US $15.14 |
||
|
15
|
15
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
16
|
16
37000-44871-000
LOCK SET
|
37000-44871-000 |
— | ||
|
17
|
17
37110-44A20-000 SWITCH ASSY,IGNITION |
37110-44A20-000 |
US $119.54 |
||
|
18
|
18
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp |
37740-31D00-000 |
from US $20.80 |
||
|
19
|
19
09443-06064-000 SPRING |
09443-06064-000 |
from US $7.09 |
||
|
20
|
20
37840-44X50-000
Switch Assy,Side Stand
|
37840-44X50-000 |
— | ||
| replacement | |||||
|
20
|
20
37840-44X51-000 Switch Assy,Side Stand |
37840-44X51-000 |
from US $59.62 |
||
|
21
|
21
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
22
|
22
38740-24X50-000 RELAY ASSYRelay, neutral start |
38740-24X50-000 |
from US $25.08 |
||
|
23
|
23
38500-44B00-000 HORN ASSY |
38500-44B00-000 |
from US $57.76 |
||
|
24
|
24
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
26
|
26
37146-03A00-000 KEY,BLANK(TYPE:C) |
37146-03A00-000 |
from US $9.68 |
||
|
26
|
26
37146-03A10-000 KEY,BLANK(TYPE:D) |
37146-03A10-000 |
from US $8.36 |
||
|
26
|
26
37146-03A20-000 KEY,BLANK(TYPE:E) |
37146-03A20-000 |
from US $9.68 |
||
|
26
|
26
37146-03A30-000 KEY,BLANK(TYPE:F) |
37146-03A30-000 |
from US $9.68 |
||
