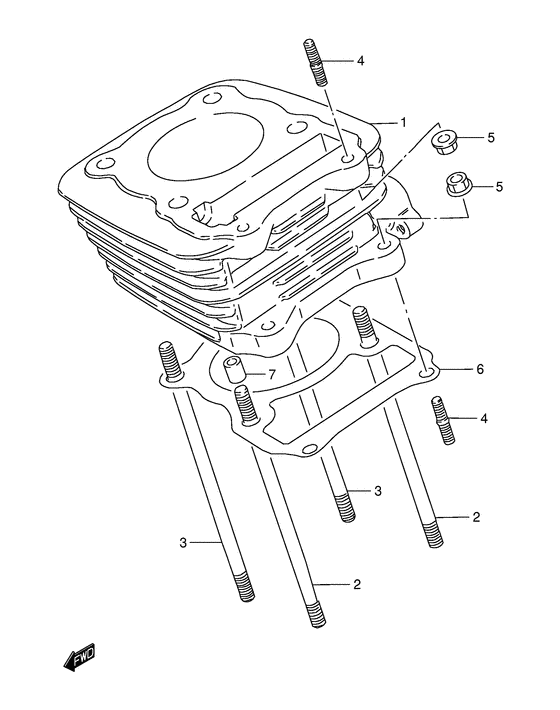

Cylinder Diagram Suzuki DR200 DR200SE
- Year
- 2001
- Model code
- DR200SEK1(E3/E28) K1
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11211-13G50-0F0 CYLINDERModel k1/k2/k3 |
11211-13G50-0F0 |
from US $304 |
||
|
1
|
1
11211-42A50-0F0
Cylinder
Model k4/k5 |
11211-42A50-0F0 |
— | ||
|
2
|
2
09108-08195-000 BOLT,STUDStud bolt (l:160) Stud bolt (l:160); |
09108-08195-000 |
from US $3.09 |
||
|
3
|
3
09108-08184-000 BOLT,STUD(8X167)Stud bolt (l:167) Stud bolt (l:167); |
09108-08184-000 |
from US $3.31 |
||
|
4
|
4
01421-06253-000
Stud bolt
Stud bolt; |
01421-06253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0625A-000 BOLT,STUDStud bolt; |
01421-0625A-000 |
from US $0.98 |
||
|
5
|
5
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
11241-42A01-000
Gasket, cylinder
Model k1/k2/k3 |
11241-42A01-000 |
— | ||
| replacement | |||||
|
6
|
6
11241-42A10-000 GASKET,CYLINDERModel k1/k2/k3 |
11241-42A10-000 |
from US $5.02 |
||
|
6
|
6
11241-42A10-000 GASKET,CYLINDERModel k4/k5 |
11241-42A10-000 |
from US $5.02 |
||
|
7
|
7
04211-11149-000 PIN |
04211-11149-000 |
from US $1.12 |
||
