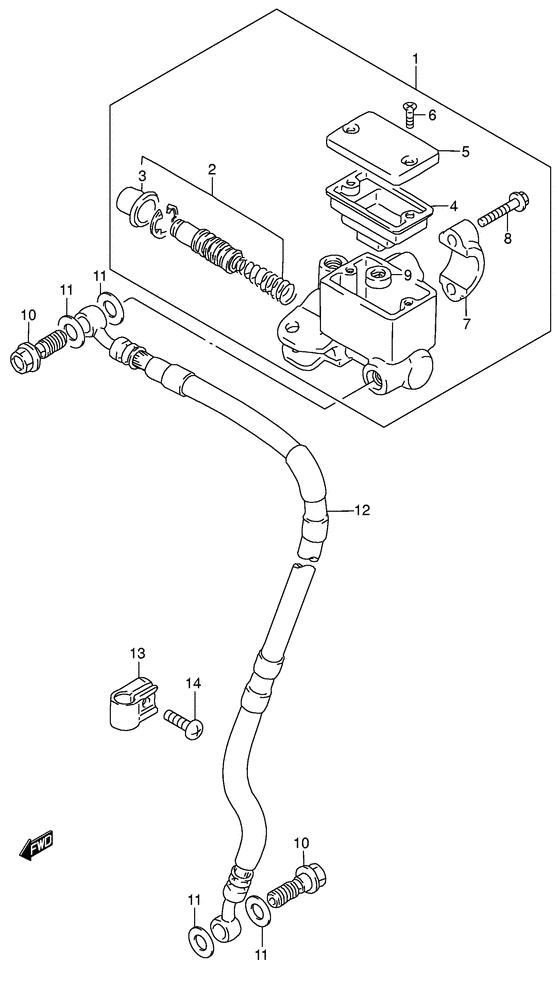

Front Master Cylinder Diagram Suzuki DR200 DR200SE
- Year
- 2001
- Model code
- DR200SEK1(E3/E28) K1
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-03D00-000
Cylinder assy,f
|
59600-03D00-000 |
— | ||
| replacement | |||||
|
1
|
1
59600-03D01-000 CYLINDER ASSY,FR MASTER |
59600-03D01-000 |
from US $174.43 |
||
|
2
|
2
69600-38810-000 PISTON/CUP SETPiston/cup set Piston/cup set; |
69600-38810-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-44B00-000 DIAPHRAGMDiaphragm |
59667-44B00-000 |
from US $8.27 |
||
|
5
|
5
59669-03D00-000 CAP |
59669-03D00-000 |
from US $15.46 |
||
|
6
|
6
02122-04123-000
Screw
|
02122-04123-000 |
— | ||
| replacements | |||||
|
6
|
6
02122-0412B-000 SCREW |
02122-0412B-000 |
US $12.90 |
||
|
6
|
6
02122-0412A-000 SCREWScrew, cap |
02122-0412A-000 |
from US $3.04 |
||
|
7
|
7
59671-03D00-000 HOLDER |
59671-03D00-000 |
from US $12.59 |
||
|
8
|
8
59675-27C00-000 Bolt |
59675-27C00-000 |
from US $2.02 |
||
|
9
|
9
59748-14500-000 SEPARATOR |
59748-14500-000 |
from US $5.78 |
||
|
10
|
10
09360-10039-000
Bolt
Union bolt (10x22); Model k1/k2 |
09360-10039-000 |
— | ||
| replacement | |||||
|
10
|
10
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Union bolt (10x22); Model k1/k2 |
09360-10061-000 |
from US $6.24 |
||
|
10
|
10
09360-10041-000 Bolt, upper (10x1.00x22)Union bolt (10x22); Model k3/k4/k5 |
09360-10041-000 |
from US $4.06 |
||
| replacement | |||||
|
10
|
10
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Union bolt (10x22); Model k3/k4/k5 |
09360-10061-000 |
from US $6.24 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
59480-44AA0-000
Hose, front brake
|
59480-44AA0-000 |
— | ||
| replacement | |||||
|
12
|
12
59480-44AA1-000 HOSE,FR BRAKE |
59480-44AA1-000 |
from US $125.86 |
||
|
13
|
13
58621-07A10-000
Clamp
Clamp, brake hose; |
58621-07A10-000 |
— | ||
| replacement | |||||
|
13
|
13
58621-07A20-000 CLAMP,BRAKE HOSEClamp, brake hose; |
58621-07A20-000 |
from US $1.76 |
||
|
14
|
14
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
