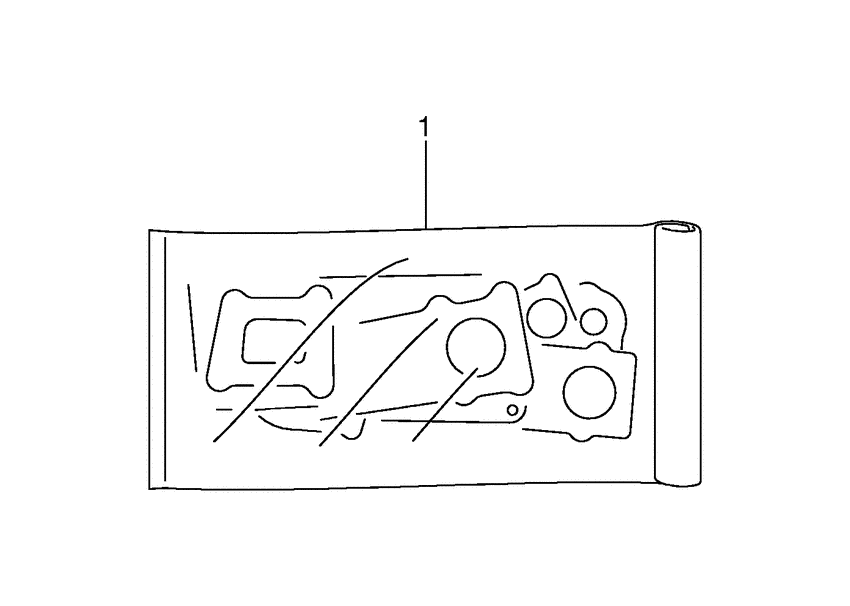

Gasket set Diagram Suzuki DR200 DR200SE
- Year
- 2001
- Model code
- DR200SEK1(E3/E28) K1
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-42824-000
Gasket set
Model k1/k2/k3, opt |
11400-42824-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-42825-000 GASKET SETModel k1/k2/k3, opt |
11400-42825-000 |
from US $74.34 |
||
|
1
|
1
11401-42830-000 GASKET SETModel k4/k5, opt |
11401-42830-000 |
from US $70.40 |
||
|
2
|
2
11141-18A00-000 GASKET,CYLINDER HEADGasket cyl head Gasket, cylinder head; Not shown |
11141-18A00-000 |
from US $14.87 |
||
|
3
|
3
11241-42A01-000
Gasket, cylinder
Not shown, model k1/k2/k3 |
11241-42A01-000 |
— | ||
| replacement | |||||
|
3
|
3
11241-42A10-000 GASKET,CYLINDERNot shown, model k1/k2/k3 |
11241-42A10-000 |
from US $5.02 |
||
|
3
|
3
11241-42A10-000 GASKET,CYLINDERNot shown, model k4/k5 |
11241-42A10-000 |
from US $5.02 |
||
|
4
|
4
11482-05211-000 GASKET,CLUTCH COVERGasket, clutch cover Gasket, clutch cover; Not shown |
11482-05211-000 |
from US $8.64 |
||
|
5
|
5
11483-05312-000 GASKET,MAGNETO COVERNot shown |
11483-05312-000 |
from US $5.60 |
||
|
6
|
6
12837-19B10-000 GASKET,TENSIONER ADJUSTERGasket, tensioner adjuster; Not shown |
12837-19B10-000 |
from US $1.82 |
||
|
7
|
7
14181-42A00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe Not shown |
14181-42A00-000 |
from US $5.47 |
||
|
8
|
8
37941-33D00-000 O RING,FAIL SAFE SWO ring, fail safe switch O ring, fail safe switch; Not shown, model k1/k2/k3 |
37941-33D00-000 |
from US $1.36 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); Not shown |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1.6); Not shown, model k1/k2/k3 |
09168-08016-000 |
from US $1.22 |
||
|
11
|
11
09168-08021-000 GASKET(8.5X17X2.3) CopperGasket (8.5x17x2.3) Gasket (8.5x17x2.3); Not shown |
09168-08021-000 |
from US $1.22 |
||
|
12
|
12
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (14.1x18x1.5); Not shown, model k1/k2/k3 |
09168-14004-000 |
from US $1.22 |
||
|
12
|
12
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); Not shown, model k4/k5 |
09168-14002-000 |
— | ||
| replacement | |||||
|
12
|
12
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); Not shown, model k4/k5 |
09168-14004-000 |
from US $1.22 |
||
|
13
|
13
09280-09005-000 O RING(D:1.9,ID:8.6)O ring (d:1.9,id:8.6); Not shown |
09280-09005-000 |
from US $1.67 |
||
|
14
|
14
09280-13004-000 O-RING (D:1.9,ID:13)O ring (d:1.9,id:13.0); Not shown |
09280-13004-000 |
from US $1.31 |
||
|
15
|
15
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); Not shown |
09280-17003-000 |
from US $1.51 |
||
|
16
|
16
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) O ring (d:2.5,id:21.0); Not shown |
09280-21008-000 |
from US $0.95 |
||
|
17
|
17
09280-22008-000 O RING(D:3.1,ID:22.7)O ring (d:3.1,id:22.7); Not shown |
09280-22008-000 |
from US $1.67 |
||
|
18
|
18
09280-30001-000 O RING(D:3,ID:29.5)O ring (d:3.0,id:29.5); Not shown |
09280-30001-000 |
from US $1.51 |
||
|
19
|
19
09280-35001-000 O RING(D:1.9,ID:34.6)O ring (d:1.9,id:34.6); Not shown |
09280-35001-000 |
from US $2.08 |
||
|
20
|
20
09280-54001-000 O RING(D:2.4,ID:52.6)O ring (d:2.4,id:52.6); Not shown |
09280-54001-000 |
from US $2.13 |
||
|
21
|
21
09280-60005-000 O RING(D:2.4,ID:60.5)O ring (d:2.4,id:60.5) O ring (d:2.4,id:60.5); Not shown |
09280-60005-000 |
from US $1.76 |
||
