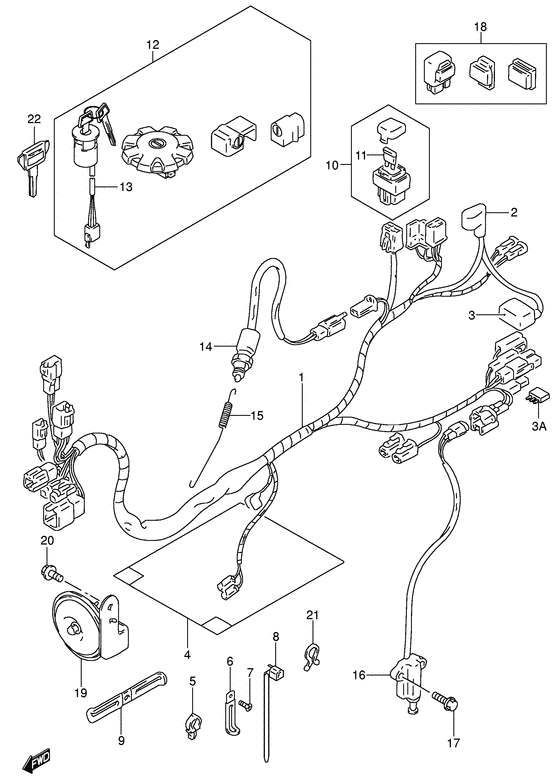

Wiring harness Diagram Suzuki DR200 DR200SE
- Year
- 2001
- Model code
- DR200SEK1(E3/E28) K1
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-42A50-000 HARNESS,WIRINGHarness, wiring Harness, wiring; |
36610-42A50-000 |
from US $307.28 |
||
|
2
|
2
31861-10D00-000 CAP,STARTER RELAYCap, starter relay |
31861-10D00-000 |
from US $4.20 |
||
|
3
|
3
33624-10D00-000 CAP,BATTERY PLUSCap, battery plus term Cap, battery (+); |
33624-10D00-000 |
from US $2.40 |
||
|
3A
|
3A
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
3A
|
3A
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
4
|
4
36618-15D20-000
COVER,WIRING HARNESS
Cover, wire harness; |
36618-15D20-000 |
— | ||
| replacement | |||||
|
4
|
4
36618-15D21-000 Cover,wiring HarnessCover, wire harness; |
36618-15D21-000 |
from US $9.12 |
||
|
5
|
5
09403-12404-000 CLAMP |
09403-12404-000 |
US $9.20 |
||
|
6
|
6
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
6
|
6
09404-06434-000
CLAMP(L:80 T:1.0)
Clamp (l:95); |
09404-06434-000 |
— | ||
| replacement | |||||
|
6
|
6
09404-06036-000 Clamp(L:80)Clamp (l:95); |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
03541-04103-000
Screw
|
03541-04103-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
8
|
8
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
8
|
8
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
8
|
8
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
8
|
8
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
9
|
9
36651-05301-000 CLAMP,STARTER MOTOR LEADClamp, starter motor reed Clamp, starter motor lead; |
36651-05301-000 |
US $2.39 |
||
|
10
|
10
36740-24B01-000 BOX ASSY,FUSEBox assy, main fuse |
36740-24B01-000 |
from US $15.14 |
||
|
11
|
11
09481-20101-000 FUSE(20A)Fuse (20a); |
09481-20101-000 |
from US $3.35 |
||
|
12
|
12
37000-44820-000
Lock set
|
37000-44820-000 |
— | ||
| replacement | |||||
|
12
|
12
37000-44821-000
LOCK SET
|
37000-44821-000 |
— | ||
|
12
|
12
37000-44830-000
Lock set
E33 |
37000-44830-000 |
— | ||
| replacement | |||||
|
12
|
12
37000-44831-000
LOCK SET
E33 |
37000-44831-000 |
— | ||
|
13
|
13
37110-44A01-000
Switch assy, ignition
|
37110-44A01-000 |
— | ||
| replacement | |||||
|
13
|
13
37110-44A20-000 SWITCH ASSY,IGNITION |
37110-44A20-000 |
US $119.54 |
||
|
14
|
14
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; Model k1/k2/k3/k4 |
37740-31D00-000 |
from US $20.80 |
||
|
14
|
14
37740-45D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp; Model k5 |
37740-45D00-000 |
from US $16.10 |
||
| replacement | |||||
|
14
|
14
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; Model k5 |
37740-31D00-000 |
from US $20.80 |
||
|
15
|
15
09443-06064-000 SPRING |
09443-06064-000 |
from US $7.09 |
||
|
16
|
16
37840-44X50-000
Switch Assy,Side Stand
Switch assy, side stand; |
37840-44X50-000 |
— | ||
| replacement | |||||
|
16
|
16
37840-44X51-000 Switch Assy,Side StandSwitch assy, side stand; |
37840-44X51-000 |
from US $59.62 |
||
|
17
|
17
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
18
|
18
38740-24X50-000 RELAY ASSYRelay, neutral start Relay assy, side stand; |
38740-24X50-000 |
from US $25.08 |
||
|
19
|
19
38500-44B00-000 HORN ASSY |
38500-44B00-000 |
from US $57.76 |
||
|
20
|
20
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) Clip, lead wire; |
09408-00012-000 |
from US $3.37 |
||
|
22
|
22
37146-03A00-000 KEY,BLANK(TYPE:C)Key, blank; Opt,type c |
37146-03A00-000 |
from US $9.68 |
||
|
22
|
22
37146-03A10-000 KEY,BLANK(TYPE:D)Key, blank; Opt,type d |
37146-03A10-000 |
from US $8.36 |
||
|
22
|
22
37146-03A20-000 KEY,BLANK(TYPE:E)Key, blank; Opt,type e |
37146-03A20-000 |
from US $9.68 |
||
|
22
|
22
37146-03A30-000 KEY,BLANK(TYPE:F)Key, blank; Opt,type f |
37146-03A30-000 |
from US $9.68 |
||
