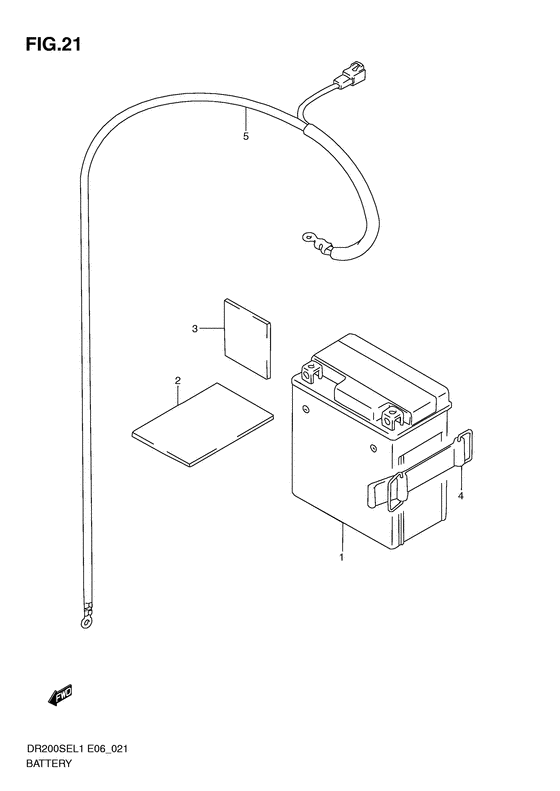

Battery Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-15D20-000
BATTERY ASSY(YTX7L-BS,12V6AH)
Battery assy (ytx7l-bs,12v,6ah); |
33610-15D20-000 |
— | ||
| replacement | |||||
|
1
|
1
99000-69645-555
BATTERY ASSY(YTX7L-BS,12V6AH)
Battery assy (ytx7l-bs,12v,6ah); |
99000-69645-555 |
— | ||
|
2
|
2
33652-28C00-000 PROTECTORCut as required |
33652-28C00-000 |
from US $1.44 |
||
|
3
|
3
33652-36000-000 CUSHION(30X50X3)Protector, cdi (30x50x3.0) Cut as required |
33652-36000-000 |
from US $1.35 |
||
|
4
|
4
09462-00093-000 BAND |
09462-00093-000 |
from US $5.60 |
||
|
5
|
5
33860-44A00-000 WIRE,BATTERY MINUSWire, battery (-) Wire, battery (-); |
33860-44A00-000 |
from US $12.36 |
||
