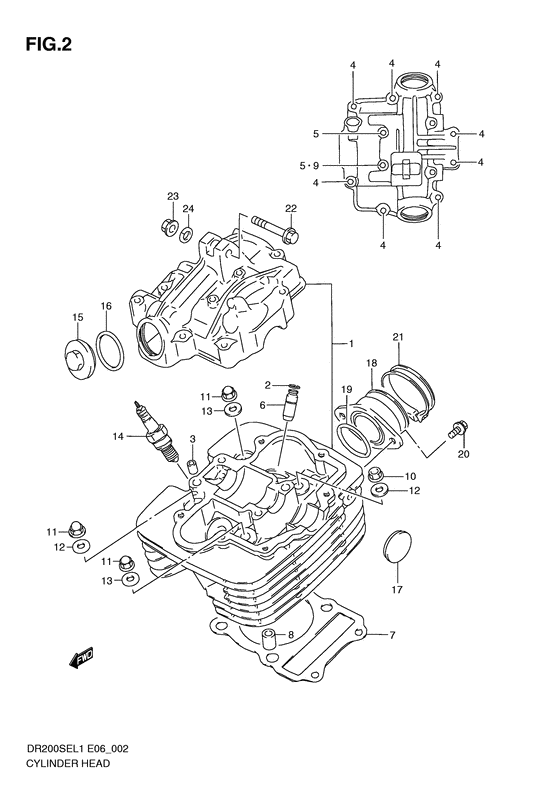

Cylinder head Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-42A80-000 HEAD ASSY,CYLINDER |
11100-42A80-000 |
US $942.08 |
||
|
2
|
2
09381-10004-000 RING,SNAPRing, valve guide Circlip; |
09381-10004-000 |
from US $1.06 |
||
|
3
|
3
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.26 |
||
|
4
|
4
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
5
|
5
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
6
|
6
11115-05270-000 GUIDE,VALVEGuide, valve Guide, valve (0s:0.3); Opt |
11115-05270-000 |
from US $15.96 |
||
|
7
|
7
11141-18A00-000 GASKET,CYLINDER HEADGasket cyl head Gasket, cylinder head; |
11141-18A00-000 |
from US $14.87 |
||
|
8
|
8
04211-11169-000 PINPin, dowel |
04211-11169-000 |
from US $1.06 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
09159-08049-000 NUT |
09159-08049-000 |
from US $1.12 |
||
|
12
|
12
09160-08039-000 WASHER(8.5X19X2.3) STEELWasher (8.5x19x2.3); |
09160-08039-000 |
from US $1.12 |
||
|
13
|
13
09168-08021-000 GASKET(8.5X17X2.3) CopperGasket (8.5x17x2.3) Gasket (8.5x17x2.3); |
09168-08021-000 |
from US $1.22 |
||
|
14
|
14
09482-00223-000 PLUG,SPARK(X24ESR-U)Spark plug (denso,x24ers-u) Spark plug (nd,x24esr-u); |
09482-00223-000 |
from US $7.92 |
||
|
14
|
14
09482-00399-000 PLUG,SPARK(DR8EA)Spark plug (ngk,dr8ea) Spark plug (ngk,dr8ea); |
09482-00399-000 |
from US $5.30 |
||
|
15
|
15
11175-18900-000 CAP,INSPECTION |
11175-18900-000 |
US $11.69 |
||
| replacement | |||||
|
15
|
15
11175-18920-000 CAP,INSPECTION HOLE |
11175-18920-000 |
from US $16.46 |
||
|
16
|
16
09280-30001-000 O RING(D:3,ID:29.5)O ring (d:3,id:29.5); |
09280-30001-000 |
from US $1.51 |
||
|
17
|
17
09241-22002-000 PLUG(OD:22.5)Plug, head |
09241-22002-000 |
from US $2.58 |
||
|
18
|
18
13110-42A12-000
PIPE,INTAKE
|
13110-42A12-000 |
— | ||
| replacement | |||||
|
18
|
18
13110-42A13-000 Pipe Comp,intake |
13110-42A13-000 |
US $37.45 |
||
|
19
|
19
09280-35001-000 O RING(D:1.9,ID:34.6)O ring (d:1.9,id:34.6); |
09280-35001-000 |
from US $2.08 |
||
|
20
|
20
02112-3616A-000 SCREW |
02112-3616A-000 |
from US $3.11 |
||
|
21
|
21
09402-48208-000 CLAMP |
09402-48208-000 |
from US $2.24 |
||
|
22
|
22
09103-08519-000 BOLT(8X55)Bolt (8x55); |
09103-08519-000 |
US $28.30 |
||
|
23
|
23
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
