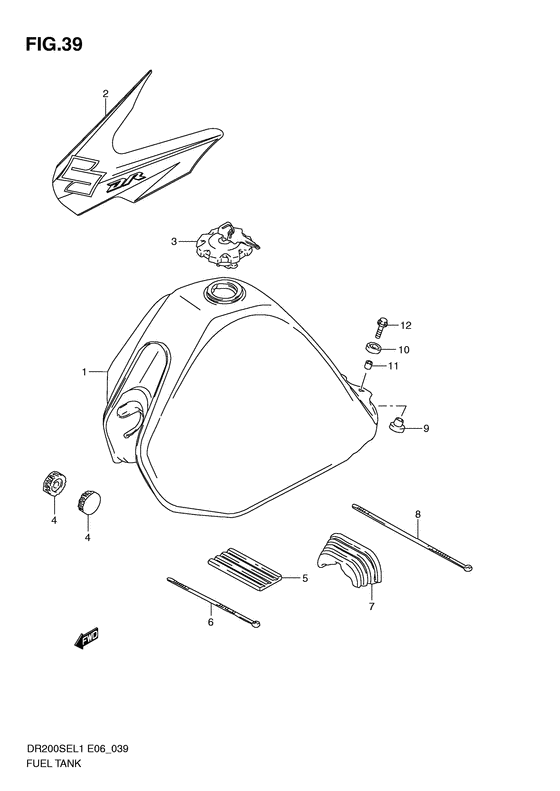

Fuel tank Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-42AJ1-5UX TANK ASSY,FUEL(WHITE)Tank assy, fuel (white); |
44100-42AJ1-5UX |
US $930.97 |
||
|
2
|
2
68110-42AC0-HLU TAPE SET,FUEL TANK |
68110-42AC0-HLU |
US $63.30 |
||
|
3
|
3
44200-12851-000
CAP SET,FUEL TANK
|
44200-12851-000 |
— | ||
| replacement | |||||
|
3
|
3
44200-12852-000 Cap Set,fuel Tank |
44200-12852-000 |
US $181.71 |
||
|
4
|
4
09329-10016-000 CUSHIONCushion, front |
09329-10016-000 |
from US $2.08 |
||
|
5
|
5
44541-14500-000 CUSHION,FUEL TANK UPR FRCushion, fuel tank upper front; |
44541-14500-000 |
from US $7.75 |
||
|
6
|
6
09407-25402-000 CLAMP(L:250)Clamp, tilt sw Clamp (l:248); |
09407-25402-000 |
from US $2.24 |
||
|
7
|
7
44542-14A00-000 CUSHION,FUEL TANK RRCushion, fuel tank rr Cushion, fuel tank rear; |
44542-14A00-000 |
from US $10.38 |
||
|
8
|
8
09407-30402-000 CLAMP(L:300) |
09407-30402-000 |
from US $6.58 |
||
|
9
|
9
09320-10020-000
CUSHION
|
09320-10020-000 |
— | ||
| replacement | |||||
|
9
|
9
09320-10071-000 Cushion(9X24X18) |
09320-10071-000 |
from US $1.98 |
||
|
10
|
10
09320-14013-000 CUSHIONCushion, rear upper |
09320-14013-000 |
from US $2.08 |
||
|
11
|
11
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) Spacer (6.5x9x18); |
09180-06271-000 |
from US $1.51 |
||
|
12
|
12
01570-0630B-000 Bolt |
01570-0630B-000 |
from US $2.92 |
||
