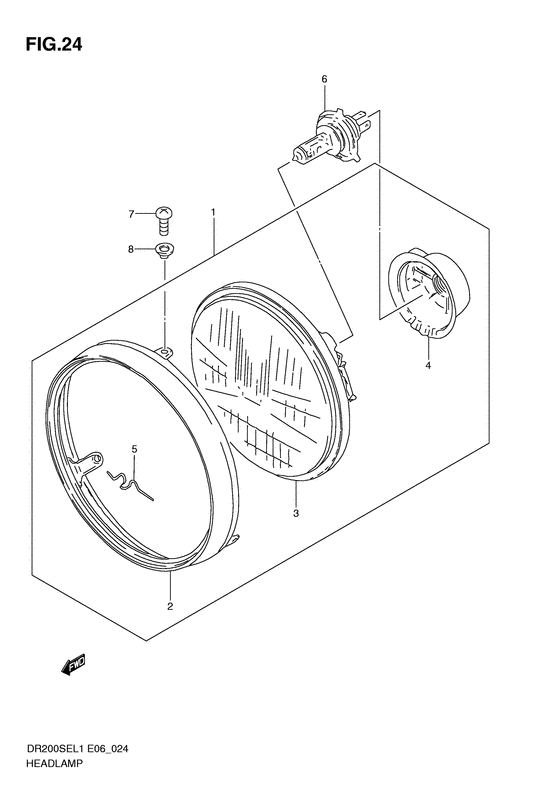

Headlamp Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-34A12-999 HEADLAMP ASSY |
35100-34A12-999 |
US $209.60 |
||
|
2
|
2
35111-34A00-000 RIM |
35111-34A00-000 |
US $41.95 |
||
|
3
|
3
35121-34A10-000 Unit |
35121-34A10-000 |
US $97.52 |
||
|
4
|
4
35173-45200-000 COVER,SOCKETCover, socket Cover, socket; |
35173-45200-000 |
from US $11.92 |
||
|
5
|
5
35128-27221-000 SPRINGSpring, support |
35128-27221-000 |
US $1.92 |
||
|
6
|
6
09471-12185-000 BULB(12V60/55W,H4)Bulb (12v,65/55w) Bulb (12v,60/55w,h4); |
09471-12185-000 |
from US $64.89 |
||
| replacement | |||||
|
6
|
6
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v,60/55w,h4); |
09471-12060-000 |
from US $39.19 |
||
|
7
|
7
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
8
|
8
09169-06021-000 WASHERWasher Washer; |
09169-06021-000 |
from US $1.52 |
||
