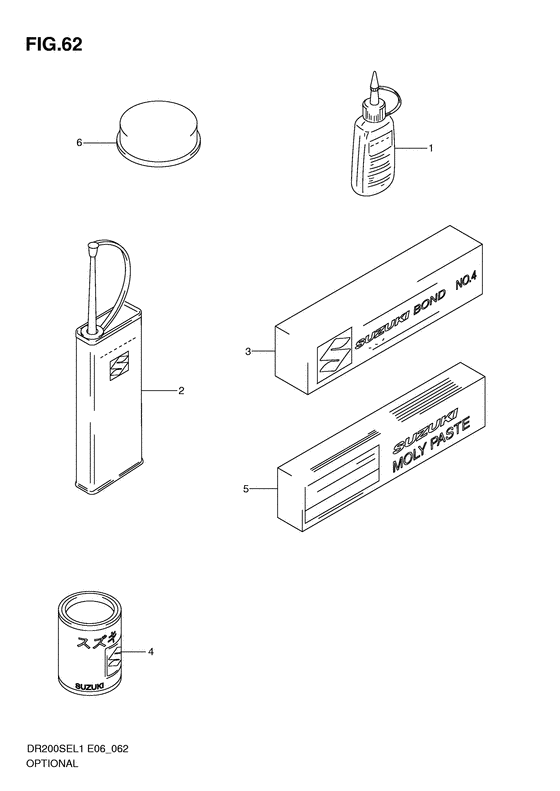

Optional Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99000-32020-000 THREAD LOCK(1333B RED 50G)Thread lock super Thread lock super (1333b); 50g |
99000-32020-000 |
from US $45.60 |
||
| replacement | |||||
|
1
|
1
990A0-06E33-10C
ECSTAR TLOCK 13
Thread lock super (1333b); 50g |
990A0-06E33-10C |
— | ||
|
1
|
1
99000-32030-000
THREAD LOCK NO.1303B PURPL 50G
Thread lock super (1303b); 50g |
99000-32030-000 |
— | ||
| replacement | |||||
|
1
|
1
990A0-06E03-10C
ECSTAR TLOCK 13
Thread lock super (1303b); 50g |
990A0-06E03-10C |
— | ||
|
1
|
1
99000-32050-000
1342 threadlock
Thread lock super (1342); 50g |
99000-32050-000 |
— | ||
| replacement | |||||
|
1
|
1
99000-32160-000
THREAD LOCK NO.1342H BLUE 50G
Thread lock super (1342); 50g |
99000-32160-000 |
— | ||
|
1
|
1
99000-32100-000
Thread lock, super (1305)
Thread lock super (1305); 50g |
99000-32100-000 |
— | ||
|
1
|
1
99000-32130-000 THREAD LOCK SUPER(1360)Thread lock super (1360); 50g |
99000-32130-000 |
US $120.70 |
||
|
2
|
2
99000-32040-000 THREAD LOCK NO.1401 CLEAR 200GCement, thread lock Thread lock cement; 200g |
99000-32040-000 |
US $35.38 |
||
|
3
|
3
99000-31110-000 LIQUID GSKT NO.1215 250GLiquid gasket no.1215 Suzuki bond (1215); 100g |
99000-31110-000 |
US $46.40 |
||
|
3
|
3
99000-31140-000
LIQUID GSKT NO.1207B 100G BLK
Suzuki bond (1207b)black; 100g |
99000-31140-000 |
— | ||
| replacements | |||||
|
3
|
3
990A0-06E70-03Z
ECSTAR S.GASKT
Suzuki bond (1207b)black; 100g |
990A0-06E70-03Z |
— | ||
|
3
|
3
99000-31080-07B
LIQUID GSKT NO.1207B 100G BLK
Suzuki bond (1207b)black; 100g |
99000-31080-07B |
— | ||
|
4
|
4
99000-25030-000
GREASE(C)EP2 LITHIUM 150G
Suzuki super grease; 150g |
99000-25030-000 |
— | ||
| replacement | |||||
|
4
|
4
99000-25490-000 Ecstar Grease(C)LithiumSuzuki super grease; 150g |
99000-25490-000 |
US $24.02 |
||
|
5
|
5
99000-25140-000
MOLY PASTE 50G (cannot be supplied)
Suzuki moly paste; 50g |
99000-25140-000 |
— | ||
|
6
|
6
99000-25110-000
GREASE,PBC FOR BRK PAD 20G
Grease, brake pad (pbc); 20g |
99000-25110-000 |
— | ||
