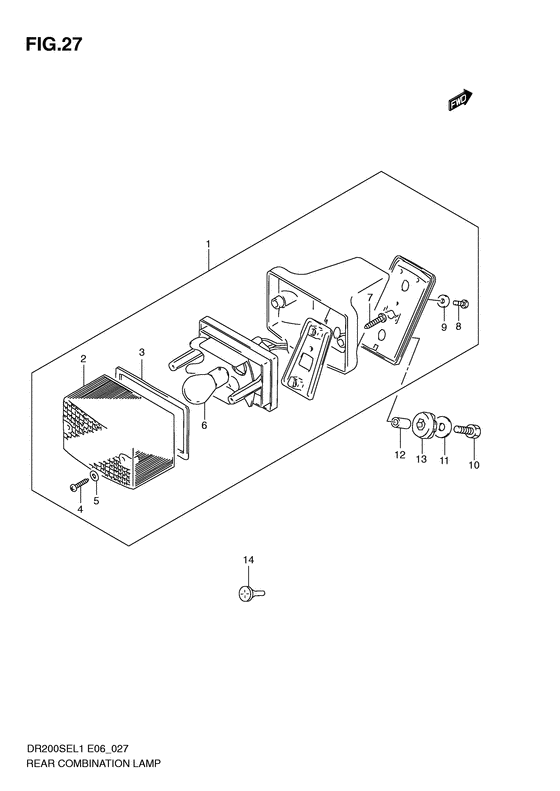

Rear combination lamp (Dr200sel1 e24) Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-42A10-000 LAMP ASSY,RR COMBINATIONLamp assy, rear combination Lamp assy, rear combination; |
35710-42A10-000 |
US $110.40 |
||
|
2
|
2
35712-36A70-000 LENSLens |
35712-36A70-000 |
US $18.48 |
||
|
3
|
3
35713-13600-000 GASKET,RR COMBI LAMP LENS |
35713-13600-000 |
from US $4.93 |
||
|
4
|
4
03211-04207-000 SCREW |
03211-04207-000 |
from US $0.80 |
||
|
5
|
5
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
6
|
6
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v,21/5w); |
09471-12128-000 |
from US $7.20 |
||
| replacement | |||||
|
6
|
6
ZK690-A4875-B00 Bulb (12V 21/5W) A4875B, STANLEYBulb (12v,21/5w); |
ZK690-A4875-B00 |
US $2.74 |
||
|
7
|
7
03212-0525B-000 SCREW |
03212-0525B-000 |
US $0.80 |
||
|
8
|
8
02112-03107-000 SCREW |
02112-03107-000 |
from US $0.77 |
||
|
9
|
9
08322-01037-000 WASHER |
08322-01037-000 |
from US $3.04 |
||
|
10
|
10
01500-0625B-000 BoltBolt, rear |
01500-0625B-000 |
from US $3.59 |
||
|
11
|
11
09160-06109-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06109-000 |
from US $0.80 |
||
|
12
|
12
09180-06270-000 SPACER(6.5X9X17.5)Spacer (6.5x9x17.5) Spacer (6.5x9x17.5); |
09180-06270-000 |
from US $2.33 |
||
|
13
|
13
09320-09015-000 CUSHION |
09320-09015-000 |
from US $1.60 |
||
|
14
|
14
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.60 |
||
